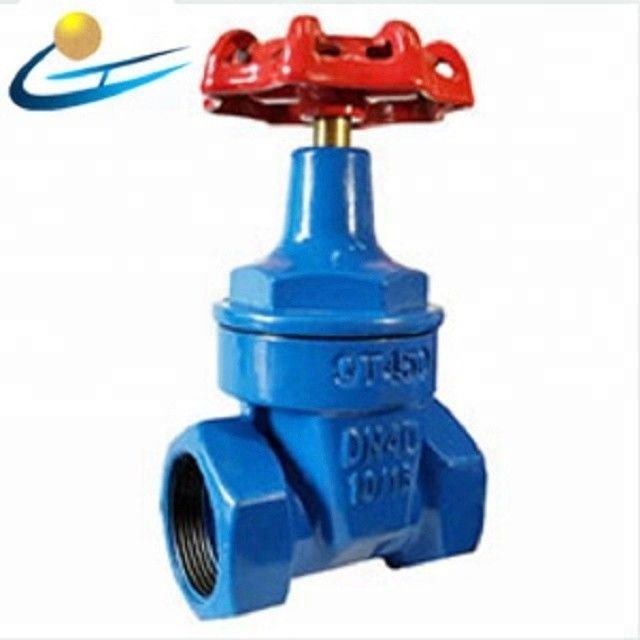

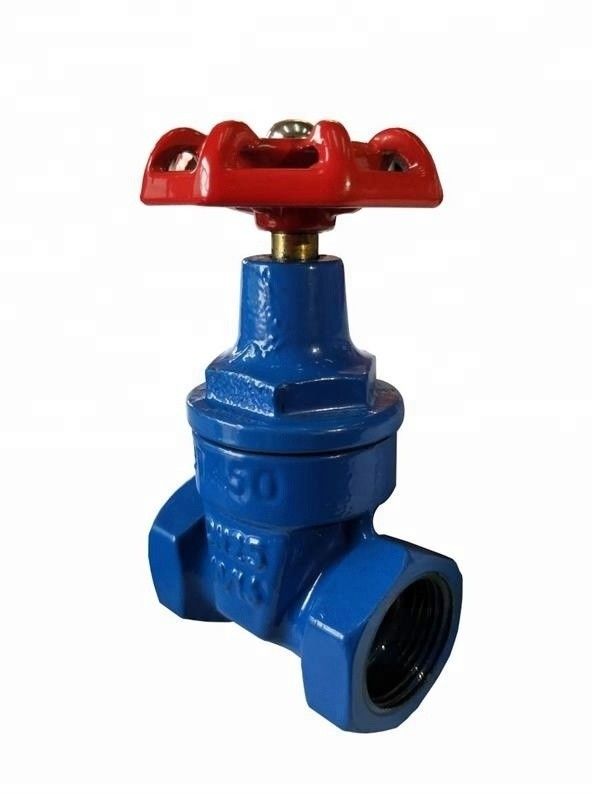

1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve

1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve

DN25 thread gate valve

screw connection thread gate valve

resilient seat thread gate valve

Place of Origin:

Hebei, China

Brand Name:

JHY

Model Number:

JHY-GV-GS

Contact Us

Request A Quote
Product Details
Type:
Gate Valves
Application:
General
Temperature Of Media:
Medium Temperature
Power:
Manual
Media:
Water
Port Size:
2"-24"
Structure:
Gate
Standard Or Nonstandard:
Standard
Body Material:
Ductile Iron
Connection:
Flange Ends
Certificate:
ISO, SGS
Payment & Shipping Terms
Price
$3.99 - $79.87/units
Supply Ability
20000 Unit/Units per Month
RELATED PRODUCTS
Contact Us
86-317-8030-499
Contact Now
Product Description

1 inch DN25 resilient seat screw connection thread gate valve



Resilient seat screw connection thread gate valves are a type of valve commonly used in industrial and municipal water systems for controlling the flow of various fluids. These valves are known for their durability, reliability, and ease of maintenance, making them a popular choice for a wide range of applications.

Design and Construction

The resilient seat screw connection thread gate valve is characterized by the following design features:

  1. Resilient Seat: The resilient seat is a unique design element that provides a soft, flexible sealing surface against the metal gate. This design helps to prevent damage to the sealing surfaces, reduces wear and tear, and allows for a tight seal even under fluctuating pressures and temperatures.

  2. Screw Connection: The valve's body and cover are typically connected using a screw connection, which allows for easy disassembly and maintenance. This feature is particularly useful for applications where regular maintenance or inspections are required.

  3. Thread Connection: The gate valve's ends are usually threaded to facilitate easy connection with other pipe components. This type of connection is quick to install and provides a secure and leak-free connection when properly tightened.

  4. Gate Mechanism: The gate itself is a flat, round, or wedge-shaped plate that moves vertically to open or close the flow path. The gate is guided by guides or stems to ensure smooth operation and to prevent misalignment.

Product Name
Material
Valve Body
Ductile iron, plastic spraying
Wedge Disc
Ductile iron, overall EPDM coating
Stem
2Gr13, 45#chrome-plated steel, SS304, SS316, SS410 Stem
Handwheel
Cast iron or iron sheet
Wedge Nut
Steel or Brass


1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 1
Our Company
1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 3
1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 4
1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 5

Valve manufacturing factory


Equipped with 8 workshops, such as EPDM workshop, Lathe workshop, painting workshop..etc.


Warehouse


Daily refresh valve body from Jhy foundry factory with 20000 catsings.



1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 6
1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 7

1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 8

1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 9
1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 10
Core shooting
Can be custom-designed to customer's given working specifications
Melting furnace
Clean, energy-efficient and well-controllable melting process compared to most other means of metal melting.
 Laboratory
Tension test specimens are made during production with the castings
Our Service
1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 11
Our Advantage
1 Inch DN25 Resilient Seat Screw Connection Thread Gate Valve 12

FAQ

Q: How many factories do Jhy have?

A:   Three factories under Jhy company: foundry factory, valve design factory, and valve manufacturing factory.

Q: What is Jhy core product?

A: No.1 in gate valve manufacturing, No.7 in Y strainers producing.

Q: What is special for Jhy valves?

A: Customization all you ask, as logo casting, packaging logo painting, specially for your business.

Q: What can I get from cooperating with Jhy?

A: 1. Unique valves, with customized service.

     2. Timely production and delivery, time is money.

     3. Market protection service, long term business strategy.
