Place of Origin:
China
Brand Name:
JHY
Model Number:
DN100
Contact Us

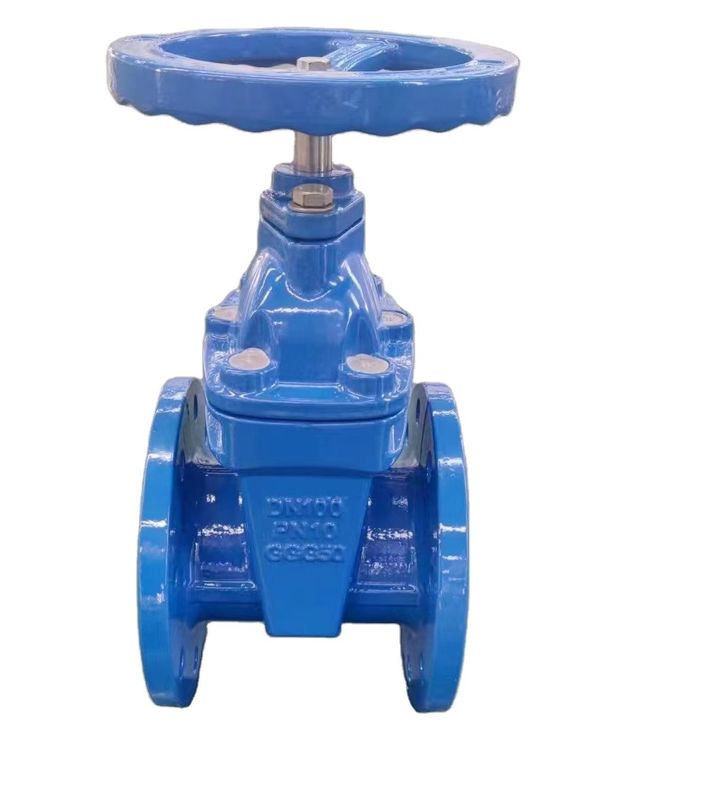

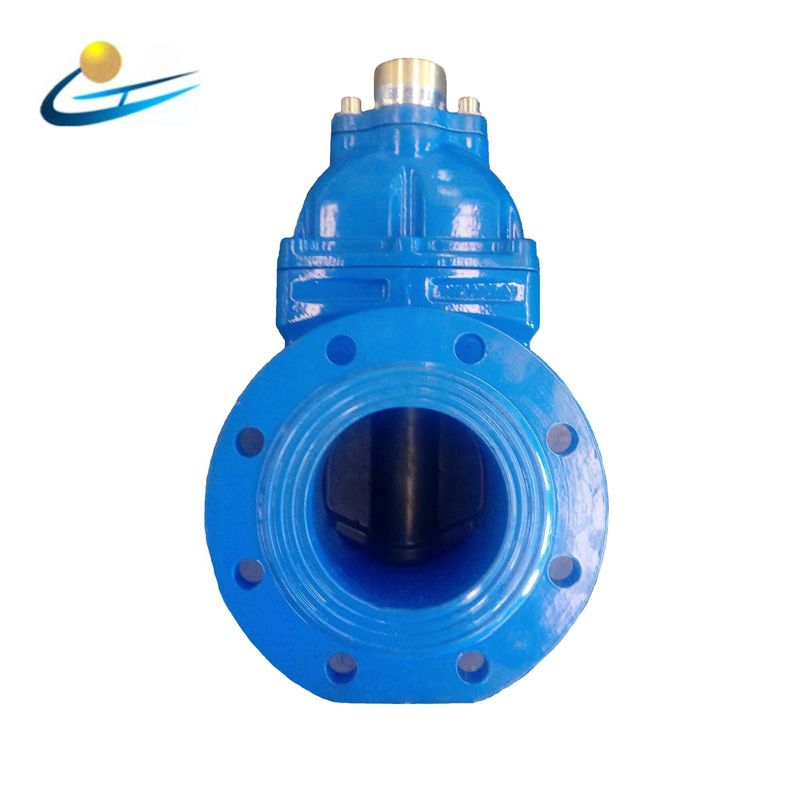

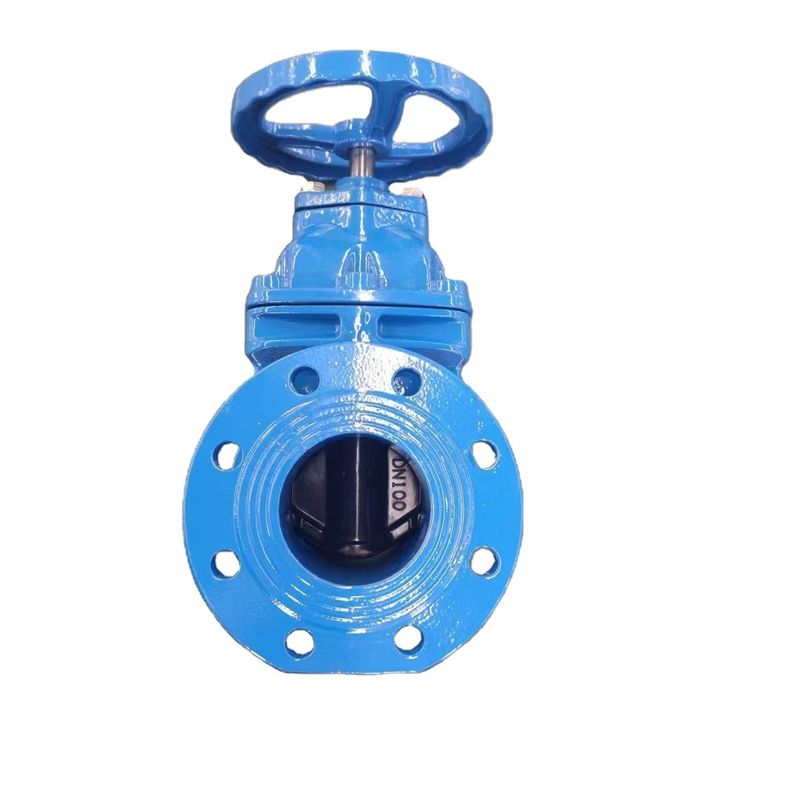

API 6D DI Gate Valve with Blue Paint Designed to API 600 Standard
A cast iron gate valve is a type of valve used to control flow in piping systems, made primarily from cast iron material. Key features include:
Cast iron gate valves are rugged and provide good shutoff when closed. They are primarily used for on/off applications in water, steam, oil and gas systems. Sizes range from 2-48 inches. Corrosion resistant coatings may be applied.
Property | Value |
---|---|
Coating | Fusion Bonded Epoxy Coating, Blue Paint |
Material | Carbon Steel, Stainless Steel, Alloy Steel |
End Connection | Flanged |
Test Standard | API 598, API 6D |
Pressure Class | 150-2500 |
Operation | Manual, Gear, Electric, Pneumatic, Hydraulic |
Size | 2-48 Inch |
Design Standard | API 600, API 6D, BS1414, ASME B16.34 |
Temperature Range | -29℃~425℃ |
Valve Type | DI Gate Valve |
- Valve size and pressure class - Available in a wide range of sizes from 2" to 72" and pressure classes from Class 125 to Class 2500. Non-standard sizes and pressures can be customized.
- End connections - Flanged, threaded, welded end, and special connections can be provided based on application requirements.
- Stem configuration - Rising or non-rising stems, stem diameters, and stem material can be customized.
- Bonnet design - Bolted bonnet, union ring, and threaded bonnets can be fabricated for specific needs.
- Body and bonnet material - In addition to cast iron, alloy steel, stainless steel, and other alloys can be used for highly corrosive or high temperature applications.
- Trim material - Trim parts like disc, seat, and packing box components can utilize specialized alloys.
- Seat design - Resilient, metal, dual disc, and cage guided seats can be customized.
- Actuators - Manual, pneumatic, hydraulic, and electric actuators can be furnished to automate valve operation.
- Certifications - Valves can be customized to meet standards like API, ANSI, MSS, ISO etc. based on region and industry.
- Special coatings and linings - For highly corrosive applications, specialized coatings and linings can be applied.
- Testing and inspection - Additional testing and inspection services can be provided per specifications.
Please let us know your project requirements and we can customize cast iron gate valves to suit your needs.
Repair Services:
we understand that having reliable and efficient technical support and service for our products is essential. We are proud to offer professional technical support and service for our DI Gate Valve product.
We are committed to providing the best technical support and service for our DI Gate Valve product. If you have any questions or concerns, please do not hesitate to contact us.
DI Gate Valves are shipped in accordance with the customer's requirements, using the most appropriate packaging materials and methods for the product. Depending on the size and weight, these products may be shipped in individual boxes, on pallets, or in crates.
The packaging materials used to protect the DI Gate Valve during shipping are designed to ensure that the product is not damaged during the transport process. Corrugated boxes, bubble wrap, foam inserts, and other materials are used to ensure protection. All packaging materials used are recyclable and eco-friendly.
DI Gate Valves are shipped via ground, air, or sea, depending on the customer's needs. The carrier is selected based on the size, weight, and destination of the shipment. All shipments are tracked and insured, to ensure that the product is delivered safely and on time.
Cast iron gate valves feature large body volume, heavy weight, and strong impact resistance. The cast iron material provides good corrosion resistance suitable for various industrial and water supply pipelines. Cast iron gate valves are also relatively low cost.
The most common issues with cast iron gate valves are valve jamming, seat leakage, difficult handwheel operation, and external corrosion. Regular maintenance is required, such as re-greasing, packing adjustments, valve cleaning, etc.
Gate valves should be operated regularly, fully opened and closed once every 3-6 months. Also ensure no debris in the pipeline and adequate lubrication. Never force open a jammed gate valve with excessive force.
The usage temperature range for cast iron gate valves is typically -29°C to 220°C. Exceeding this range will accelerate corrosion and wear.
Main maintenance includes: regular re-greasing, inspection/adjustment/replacement of packing, cleaning valve internals, checking bolting, coating maintenance, operation testing, etc.
