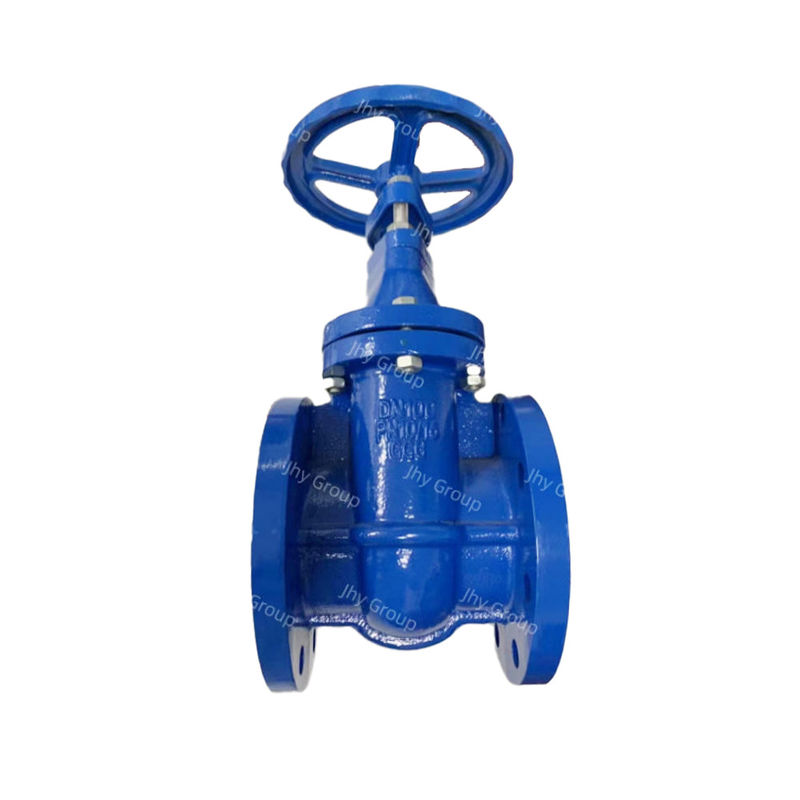

GG25 Cast Iron GGG50 Ductile Iron Metal Seat Brass Seat Non-Rising Stem Ring Gate Valve
| Product Name | Gate Valve |
| Valve Body | Ductile Rron GGG50 |
| Disc | Ductile Rron,Overall EPDM Coating |
| Stem | 45#Chrome-plated Steel |
| Seat | EPDM+GGG50 |
| Coating | WRAS Approved Epoxy,At Least 250 Micron Thick |
| Warranty | 2 years |
| Customized support | OEM, ODM, OBM |
| Place of Origin | China Hebei |
| Brand Name | Jhy |
| Application | General |
| Temperature of Media | Medium Temperature |
| Power | Manual |
| Port Size | 2''-48'' |
| Body material | Ductile Iron |
| Usage | Water;Oil;Gas |
| Product name | Gate valve |
The GG25 Cast Iron GGG50 Metal Seat Brass Seat Gate Valve is a type of gate valve made of GG25 cast iron, with the metal seat and brass seat options available. This gate valve is designed to control the flow of fluids in various industrial applications. It features a sturdy construction and is suitable for use in medium to high-pressure systems.
The GG25 cast iron material provides excellent durability and resistance to corrosion, making it suitable for use in harsh environments. The metal seat option offers high temperature and pressure resistance, making it suitable for applications that involve high operating conditions. On the other hand, the brass seat option provides superior sealing performance and is often used in applications that require a tight shut-off.
The gate valve is designed with a gate that moves up and down to control the fluid flow. It has a non-rising stem design, meaning the stem does not rise or extend above the valve body when operating. This design allows for a compact installation and is particularly suitable for applications with limited vertical space.
Overall, the GG25 Cast Iron GGG50 Metal Seat Brass Seat Gate Valve is a reliable and versatile valve option that offers durability, resistance to corrosion, and various seating options to meet different application requirements.
Our advantage

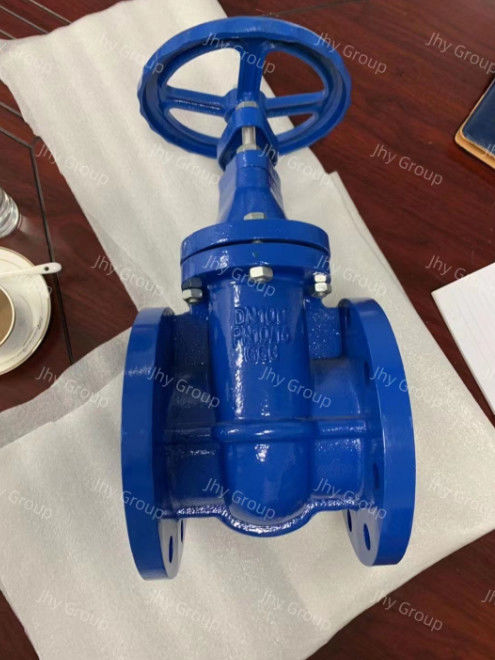

Real product show
Real certificate

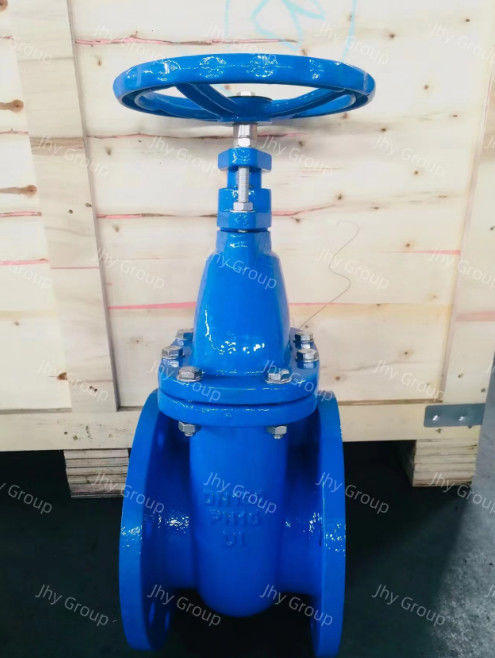

Packing details
Standard export packing, plastic bag, woven bag, wooden case, or as required.
FAQ
1. What is the working pressure of this gate valve?
- The working pressure of the gate valve depends on the specific model and size. It is important to consult the manufacturer or supplier for the exact working pressure specifications.
2. Can this gate valve be used for both liquids and gases?
- Yes, this gate valve can be used for controlling the flow of both liquids and gases in various industrial applications.
3. What is the temperature range for this gate valve?
- The temperature range for the gate valve depends on the specific model and seating material. The metal seat option typically offers higher temperature resistance compared to the brass seat option. It is recommended to consult the manufacturer's specifications for the temperature range of the particular gate valve.
4. Does this gate valve require regular maintenance?
- Like any other valve, regular maintenance is recommended to ensure optimal performance and prolong the lifespan of the gate valve. Maintenance activities may include lubrication, cleaning, and occasional inspections for wear or damage.
5. Can I install this gate valve in a vertical position?
- Yes, this gate valve can be installed in a vertical position, thanks to its non-rising stem design. The non-rising stem design allows for a compact installation, making it suitable for applications with limited vertical space.
6. Can this gate valve be used for corrosive fluids?
- The GG25 cast iron material offers good corrosion resistance, making it suitable for use with moderately corrosive fluids. However, for highly corrosive fluids, it is recommended to consult the manufacturer or supplier for appropriate sealing materials or coatings.
7. Can I replace the seating material of this gate valve?
- In some cases, it is possible to replace the seating material of the gate valve. However, it is important to consult the manufacturer or supplier for compatibility and guidelines for any replacement or modification of the gate valve's components.
