Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve

Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve

Resilient Seated Gate Valve Handle Extension

Handle Extension Non Rising Stem Valve

Place of Origin:

China

Brand Name:

Jhy

Certification:

ISO;CE;SGS;TUV

Contact Us

Request A Quote
Product Details
Product Name:
Gate Valve
Material:
Ductile Iron
Connection:
Flange Ends
Color:
Customized Color
Standard Or Nonstandard:
Standard Or Nonstandard
Usage:
Water;Oil;Gas
Payment & Shipping Terms
Minimum Order Quantity
10 Piece
Price
USB 39.9 Piese
Packaging Details
Standard export packing, plastic bag, woven bag, wooden case, or as required.
Delivery Time
3~8 work days
Payment Terms
L/C, T/T
Supply Ability
10 Pieces 5~8 days
RELATED PRODUCTS
Contact Us
86-317-8030-499
Contact Now
Product Description

Non-Rising Stem Resilient Seated Rubber Seat Extension Stem Gate Valve



Product Description

The Non-Rising Stem Resilient Seated Rubber Seat Extension Stem Gate Valve is a type of gate valve that features a rubber seat and a non-rising stem. It is designed to provide a tight seal and excellent flow control in various applications.

The valve is constructed with a rubber seat, which offers strong resilience and sealing capabilities. It ensures a leak-free closure, even in high-pressure environments. The seat also helps to prevent any damage or scoring to the gate during operation.

The non-rising stem design means that the stem does not move up or down when the valve is operated. Instead, it operates by rotating the stem to open or close the gate. This design offers several advantages, including a more compact size, reduced installation height, and the ability to operate in tight spaces where vertical clearance may be limited.


Main Feature:

1. Ductile iron
2. EPDM, vulcanization pressure technology
3. Spray coating approved by WRAS



Product Name Material
Valve Body Ductile Rron GGG50
Disc Ductile Rron,Overall EPDM Coating
Stem 45#Chrome-plated Steel
Seat EPDM+GGG50
Coating WRAS Approved Epoxy,At Least 250 Micron Thick
Warranty 2 years
Customized support OEM, ODM, OBM
Place of Origin China Hebei
Brand Name Jhy
Application General
Temperature of Media Medium Temperature
Power Manual
Port Size 2''-48''
Body material Ductile Iron
Usage Water;Oil;Gas
Product name Gate valve

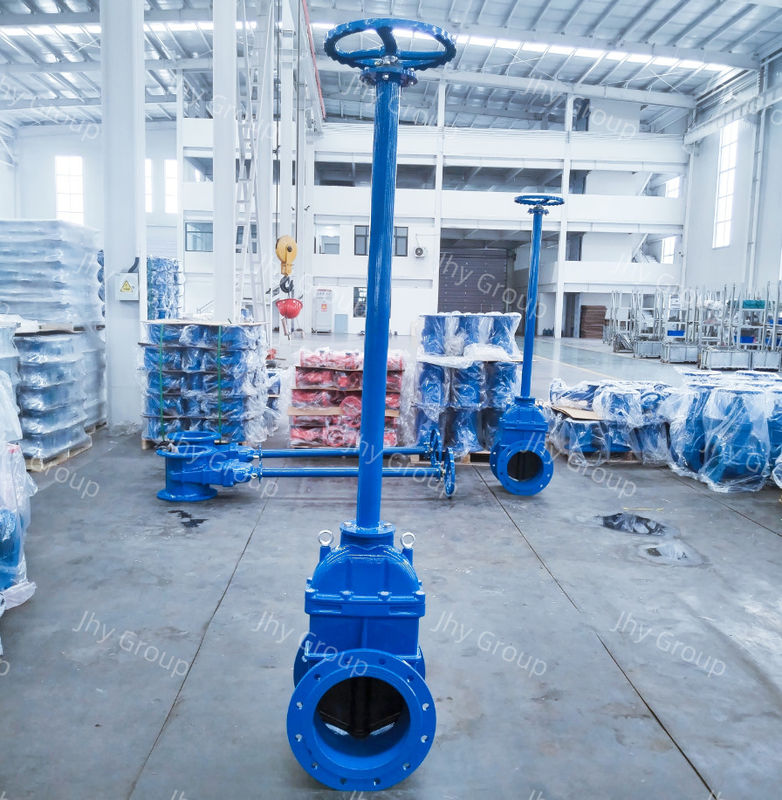

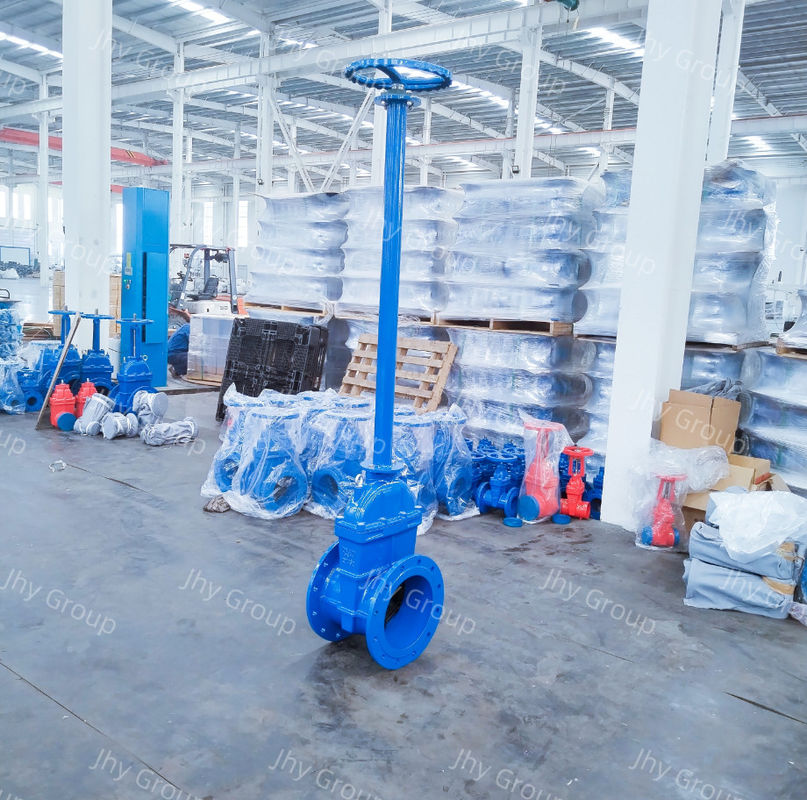

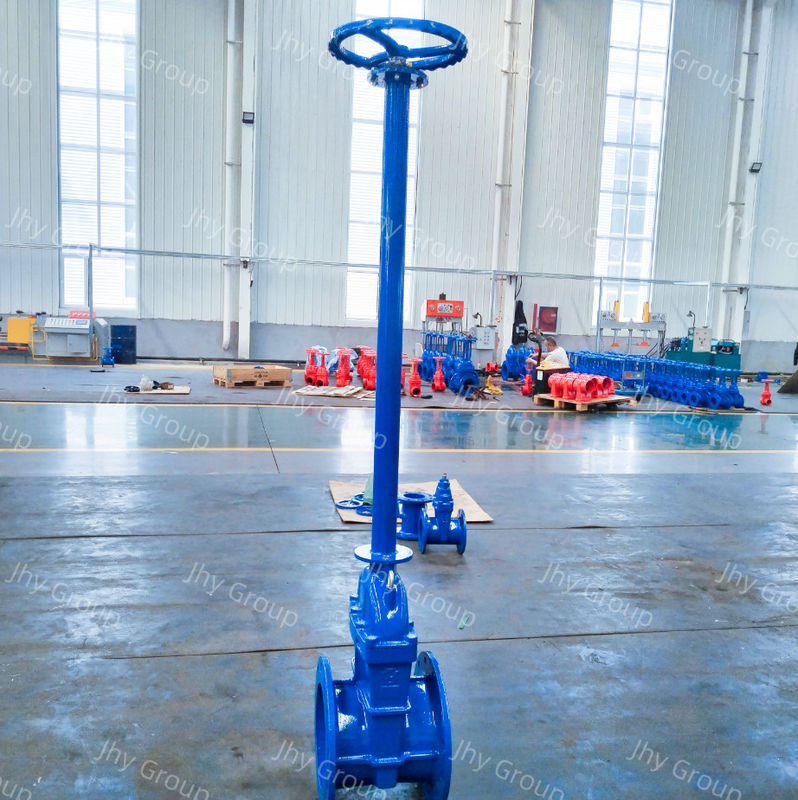

Real product show

Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 0



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 1



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 2



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 3



Our advantage

The Non-Rising Stem Resilient Seated Rubber Seat Extension Stem Gate Valve offers several advantages:

1. Tight seal: The rubber seat provides excellent resilience and sealing capabilities, ensuring a leak-free closure even in high-pressure environments.

2. Durability: The valve is constructed with resilient materials, making it resistant to wear, corrosion, and damage. It has a long service life and requires minimal maintenance.

3. Compact size: The non-rising stem design allows for a more compact valve size, making it suitable for installations where space is limited.

4. Reduced installation height: The non-rising stem eliminates the need for a long stem shaft, reducing the overall height of the valve during installation. This can be beneficial in confined spaces.

5. Easy operation: The extension stem provides convenient access to the stem, even in hard-to-reach locations or when the valve is installed underground. It allows for smooth and easy operation of the valve.

6. Versatility: The valve is suitable for various applications and industries, including water treatment, wastewater management, oil and gas, and industrial processes.

Overall, the Non-Rising Stem Resilient Seated Rubber Seat Extension Stem Gate Valve offers reliable flow control, excellent sealing performance, and ease of operation, making it a preferred choice in many industrial settings.



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 4

Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 5

Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 6



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 7



Real factory scene



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 8



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 9



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 10



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 11



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 12



Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 13


Real certificate




Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 14

Packing details

Standard export packing, plastic bag, woven bag, wooden case, or as required.
Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 15

Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 16

Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 17

Resilient Seated Gate Valve Handle Extension Non Rising Stem Valve 18

FAQ



Q1: What is the purpose of the rubber seat in this valve?

A1: The rubber seat provides a tight seal and prevents leakage when the valve is closed. It also helps protect the gate from damage during operation.



Q2: Is this valve suitable for high-pressure applications?

A2: Yes, the resilient rubber seat and robust construction of the valve make it suitable for high-pressure environments, ensuring a reliable seal.



Q3: How does the non-rising stem design benefit the valve?

A3: The non-rising stem design allows for a more compact valve size and reduced installation height. It is especially advantageous in installations with limited vertical clearance.



Q4: What is the purpose of the extension stem?

A4: The extension stem provides convenient access to the valve stem for operation, even in hard-to-reach locations or when the valve is installed underground. It reduces the effort required to turn the valve on and off.



Q5: Can this valve be used in different industries?

A5: Yes, the Non-Rising Stem Resilient Seated Rubber Seat Extension Stem Gate Valve is versatile and suitable for various industries, including water treatment, wastewater management, oil and gas, and industrial processes.



Q6: How long is the service life of this valve?

A6: The valve is constructed with durable materials, ensuring a long service life with proper maintenance. The exact service life may vary depending on the application and operating conditions.



Q7: Is any regular maintenance required for this valve?

A7: Regular maintenance, such as lubrication of the stem and seat inspection, is recommended to ensure optimal performance and extend the service life of the valve.



Q8: Can this valve be customized for specific applications?

A8: Yes, the valve can be customized with different materials, sizes, and connection types to meet specific application requirements. It is advisable to consult with the manufacturer or supplier for customization options.
