Product Description

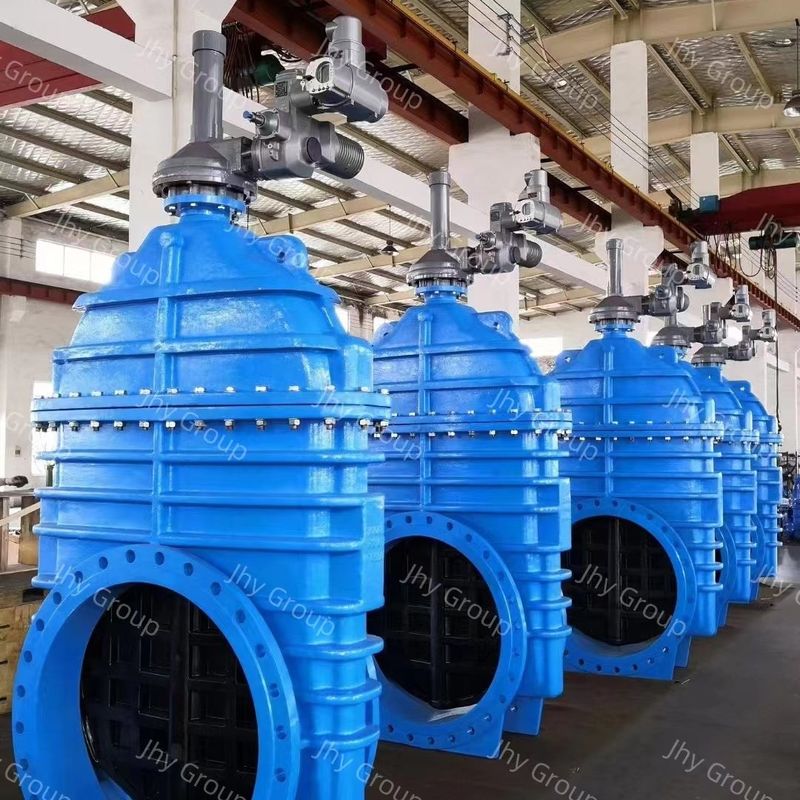

Electric Resilient Seated Flange End Ductile Iron Gate Valve Description

The PN16 Electric Resilient Seated Flange End Ductile Iron Gate Valve is a type of valve that is designed to control the flow of fluids in a pipeline. It is made of ductile iron, which is known for its high strength and durability.
This gate valve has a flange end connection, which allows for easy installation and maintenance. It is designed to withstand a pressure rating of PN16, meaning it can handle a maximum pressure of 16 bar.
The valve features a resilient seated design, which means it has a rubber or elastomer seat that provides a tight seal when the valve is closed. This helps to prevent leakage and ensure efficient flow control.
The electric actuator on the valve allows for remote operation, making it suitable for applications where manual operation is not feasible or convenient. The actuator can be controlled using an electrical signal, such as a switch or a control panel.
Overall, the PN16 Electric Resilient Seated Flange End Ductile Iron Gate Valve is a reliable and efficient valve option for controlling fluid flow in various industrial applications.



Specification Details
Valve Type Resilient Seated Gate Valve
Material Ductile Iron
End Connection Flange
Size Range 2" - 24" (DN50 - DN600)
Pressure Rating PN10, PN16, PN25
Operating Pressure 10 bar / 16 bar / 25 bar
Face to Face Distance According to ANSI B16.10 / DIN 3202 F4
Design Standard API 600, API 6D, BS EN 10434
Flange Standard ANSI B16.5, DIN, JIS, BS, etc.
Seat Material EPDM / NBR / VITON
Stem Material Stainless Steel
Bonnet Type Bolted Bonnet
Operation Handwheel, Gearbox, Actuator
Features Non-rising stem, Resilient seat, Bi-directional sealing
Testing Standard API 598, ISO 5208, BS EN 12266-1
Applications Water, wastewater treatment, HVAC, general industry





PN16 Ductile Iron Gate Valve Flange End Electric Resilient Seated 0

PN16 Ductile Iron Gate Valve Flange End Electric Resilient Seated 1

PN16 Ductile Iron Gate Valve Flange End Electric Resilient Seated 2

 Electric Resilient Seated Flange End Ductile Iron Gate Valve advantages and performance features:

  1. High Strength and Durability: The valve is made of ductile iron, which provides excellent strength and durability, ensuring long-term reliability and resistance to wear and corrosion.

  2. Resilient Seated Design: The valve features a resilient seat made of rubber or elastomer, which provides a tight seal when closed, preventing leakage and ensuring efficient flow control. The resilient seat also helps to absorb vibrations and shocks, reducing the risk of damage and extending the valve's lifespan.

  3. Flange End Connection: The valve is designed with flange end connections, allowing for easy installation and maintenance. The flange connection provides a secure and leak-free connection with the pipeline, ensuring a reliable and efficient flow control system.

  4. PN16 Pressure Rating: The valve is designed to withstand a pressure rating of PN16, meaning it can handle a maximum pressure of 16 bar. This makes it suitable for applications where medium to high-pressure fluids need to be controlled.

  5. Electric Actuator: The valve is equipped with an electric actuator, allowing for remote operation and control. This is particularly beneficial in situations where manual operation is not feasible or convenient. The electric actuator can be controlled using electrical signals, offering precise and reliable control over the valve's opening and closing.

  6. Versatile Applications: The PN16 Electric Resilient Seated Flange End Ductile Iron Gate Valve is suitable for a wide range of applications, including water supply and distribution systems, wastewater treatment plants, industrial processes, and more. Its robust construction and reliable performance make it a versatile choice for various fluid control needs.

Resilient seated gate valves with flange end connections are a common type of industrial valve constructed primarily of ductile iron. They utilize a non-metallic resilient sealing mechanism between the gate and valve seat to achieve tight shutoff. Some key features of this type of valve are:

  • The ductile iron body provides good mechanical strength and pressure handling capabilities for use in medium and low pressure piping systems.
  • The resilient seat seal delivers low leak rates and good shutoff even under low pressure differential conditions.
  • The flange end connections allow easy installation into piping systems and simplify maintenance and removal. Flange faces are precision machined to mate tightly with pipes.
  • The gate design provides straightforward operation, with the gate position controlled manually by a handwheel or automatically with electric actuators to regulate fluid flow.
  • Compared to metal seated gates, the soft seat seals are less restrictive on fluid composition and offer longer service life.
  • These valves feature convenient maintenance, replaceable parts, reliable operation, and economical cost, making them a practical control component for piping networks.

Some important points are to regularly inspect the resilient seal surface and replace if needed, maintain proper flange bolt tightness, and check for smooth gate movement. With proper sizing and care, resilient seated flange end ductile iron gate valves can provide excellent fluid control for pipeline systems.
