BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves

BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves

DIN3352 Sluice Gate Valves

Ductile Iron Sluice Gate Valves

BS5163 Sluice Gate Valves

Place of Origin:

Hebei, China

Brand Name:

JHY

Certification:

SGS, ISO, WRAS, CE, TUV

Model Number:

JHY-GV-GS-60a0

Contact Us

Request A Quote
Product Details
Warranty:
12 Months
Type:
Gate Valves
Customized Support:
OEM, ODM
Application:
General
Temperature Of Media:
High Temperature, Low Temperature, Medium Temperature, Normal Temperature, Medium Temperature
Power:
Manual
Media:
Water, Water
Port Size:
2"-24", DN40-DN1200
Structure:
Gate, Gate
Standard Or Nonstandard:
Standard
Body Material:
Ductile Iron
Connection:
Flange Ends
Certificate:
ISO, SGS,WRAS,CE,TUV
Product Keywords:
Manual Gate Valve
Seal Type:
Disc Double Seal
Payment & Shipping Terms
Price
$28.88/units 1-99 units
Packaging Details
Standard Export Packing, Plastic bag, Woven bag, Wooden case, or as required.
RELATED PRODUCTS
Contact Us
86-317-8030-499
Contact Now
Product Description
BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves


Ductile iron manual CI DI (Ductile Iron Double Insulated) stem sluice gate valves are engineered to provide reliable performance in controlling the flow of water and other non-corrosive media. These valves are widely used in various applications, including water supply systems, wastewater management, and industrial processes, where durability and efficient flow control are essential.

Key Features of Ductile Iron Manual CI DI Stem Sluice Gate Valves

  • Material: Ductile iron is chosen for its high strength and toughness, which allows it to withstand high pressure and resist deformation. It is also known for its resistance to corrosion, making it suitable for long-term use in water and other fluid systems.

  • CI (Double Insulated) Stem: The double insulated stem design provides additional protection against corrosion. It ensures that the stem, which is a critical component for the valve's operation, remains in good condition even when exposed to harsh environments.

  • Manual Operation: These sluice gate valves are operated manually, typically using a handwheel or a square nut attached to the valve stem. This manual operation allows for precise control over the flow rate and is often preferred in situations where power supply may not be reliable or where quick, on-site adjustments are necessary.

  • Sluice Gate Design: The sluice gate design is characterized by its flat gate that slides vertically to control the flow of fluid. This design allows for a clear flow path with minimal pressure drop when the valve is open, and a tight seal when closed.

  • EPDM Seat: Many ductile iron sluice gate valves feature an EPDM (Ethylene Propylene Diene Monomer) rubber seat, which provides a durable and reliable seal. EPDM is resistant to water, steam, and a range of chemicals, making it suitable for various mediums.

Applications of Ductile Iron Manual CI DI Stem Sluice Gate Valves

  • Water Supply Systems: These valves are used in potable water systems for controlling the flow of water from treatment plants to distribution networks.

  • Wastewater Management: In wastewater treatment plants, sluice gate valves are used to manage the flow of treated and untreated water.

  • Irrigation Systems: In agricultural settings, these valves can control the flow of water to different sections of an irrigation system.

  • Industrial Processes: Sluice gate valves are also used in various industrial applications, such as in cooling systems, chemical processing, and power generation, where precise control of fluid flow is required.

Maintenance and Installation

  • Maintenance: Regular inspection of the valve components, including the bronze seats and wedges, is recommended. Lubrication of the stem and stem nut is also important to ensure smooth operation and to prolong the valve's service life.

  • Installation: The valve flange is typically drilled to the 125-lb. standard template for mounting on flanged pipe. It is crucial to ensure that the flange holes straddle the vertical centerline for proper alignment and sealing.

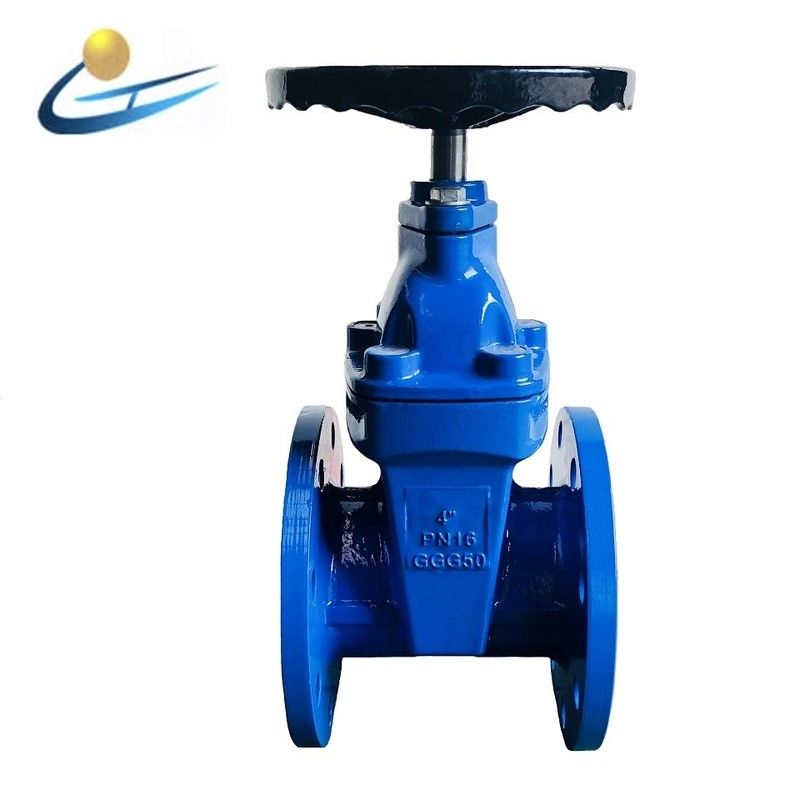

BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves 0

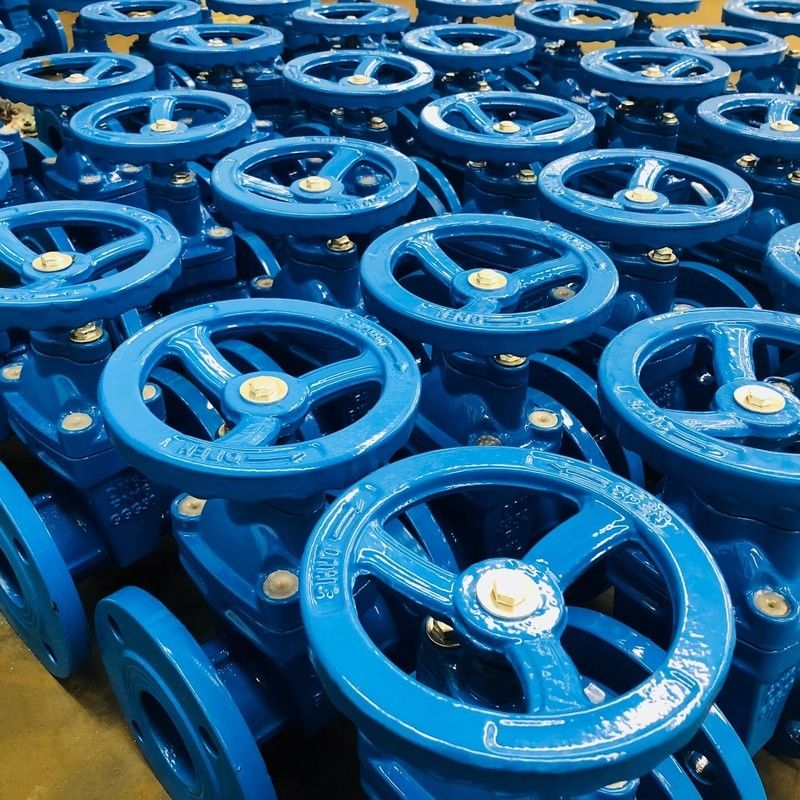

BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves 1
Related products
BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves 2


BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves 3
Automatic casting line
BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves 4
BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves 5


Package and transport
BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves 6

Our equipments
BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves 7
Real certificate
BS5163 DIN3352 Ductile Iron Manual CI DI Stem Sluice Gate Valves 8
FAQ

Q: How many factories do Jhy have?

A: Three factories under Jhy company: foundry factory, valve design factory, and valve manufacturing factory.

Q: What is Jhy core product?

A: No.1 in gate valve manufacturing, No.7 in Y strainers producing.

Q: What is special for Jhy valves?

A: Customization all you ask, as logo casting, packaging logo painting, specially for your business.

Q: What can I get from cooperating with Jhy?

1. Unique valves, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
