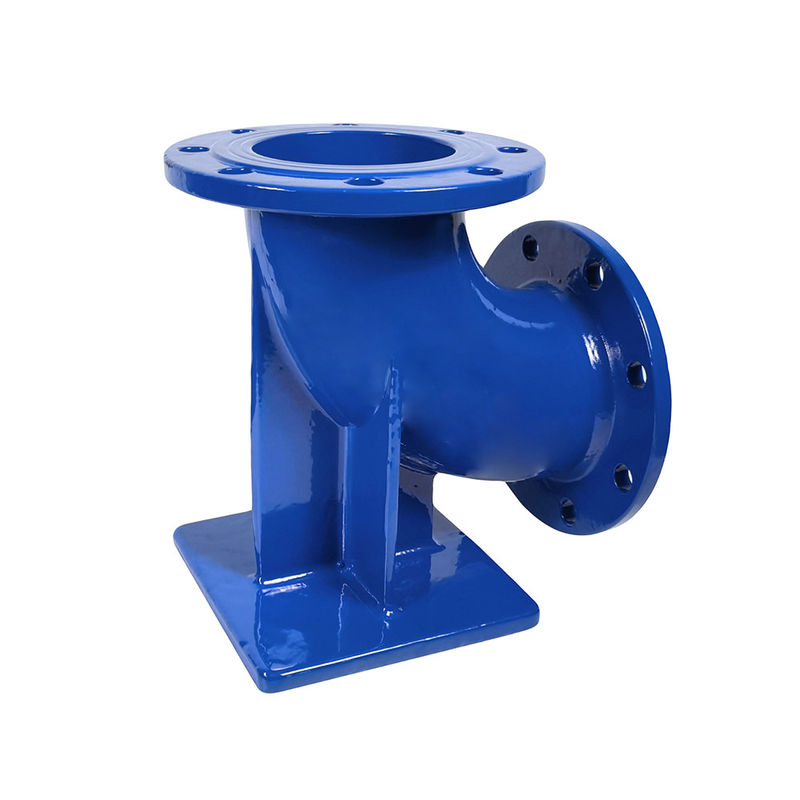

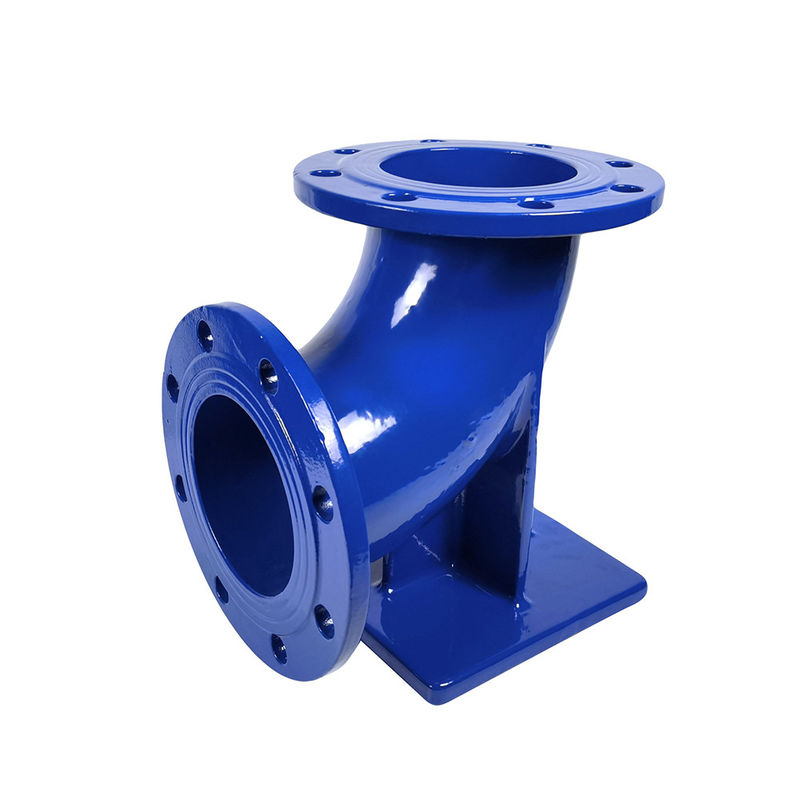

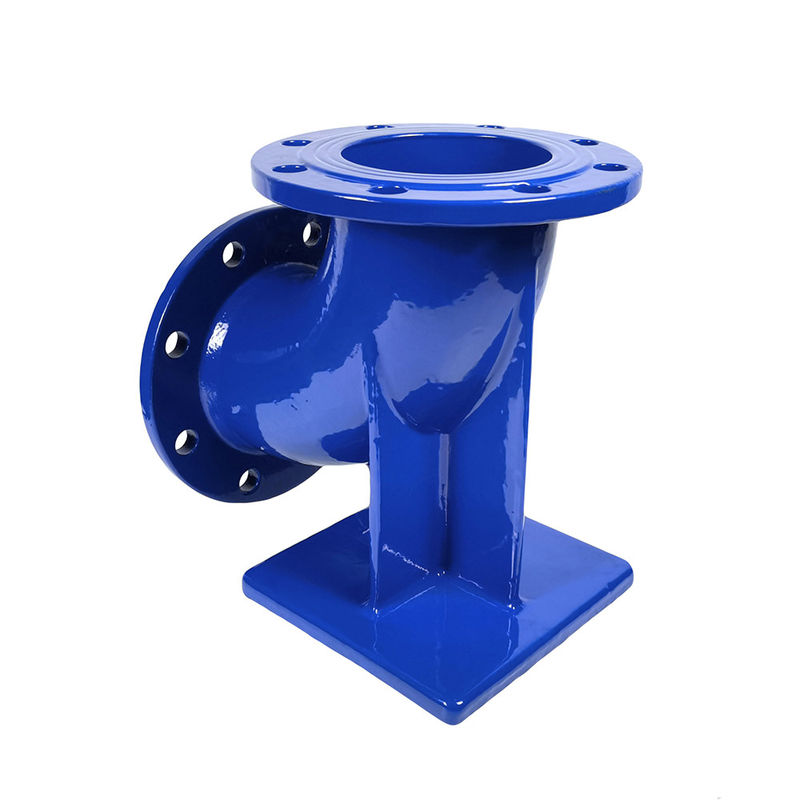

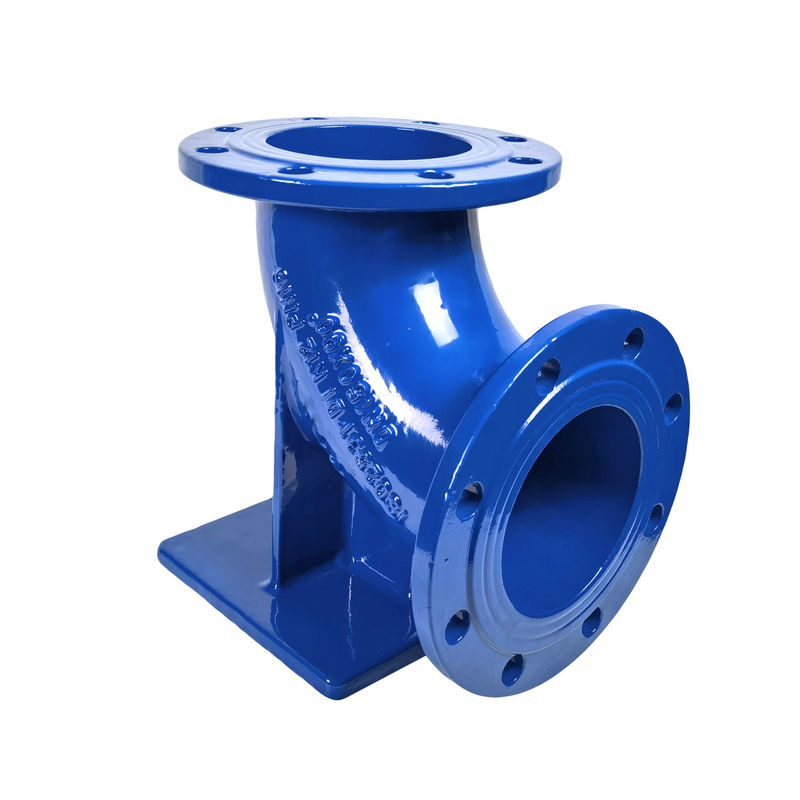

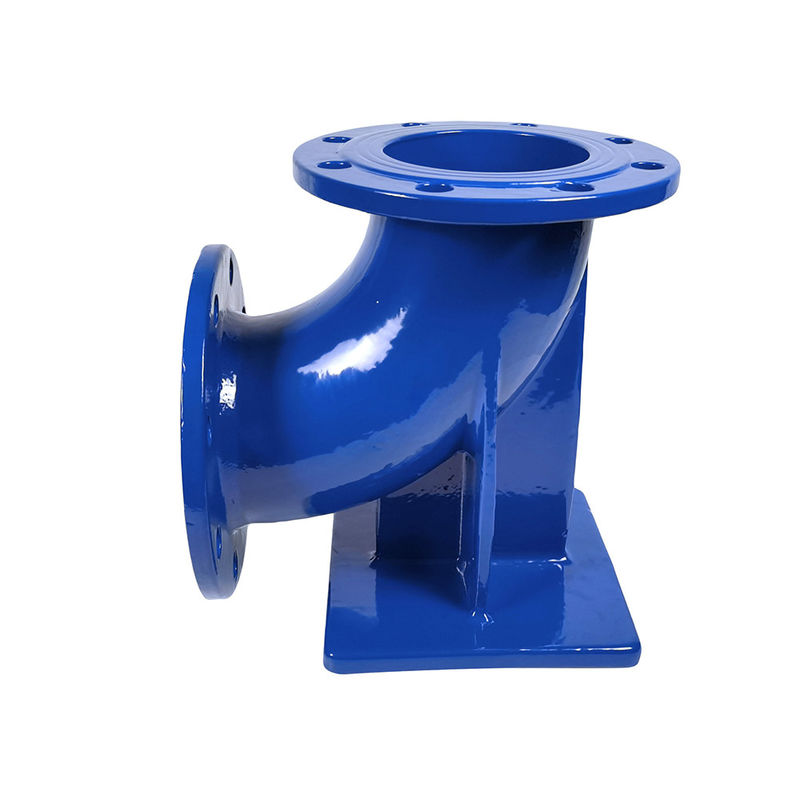

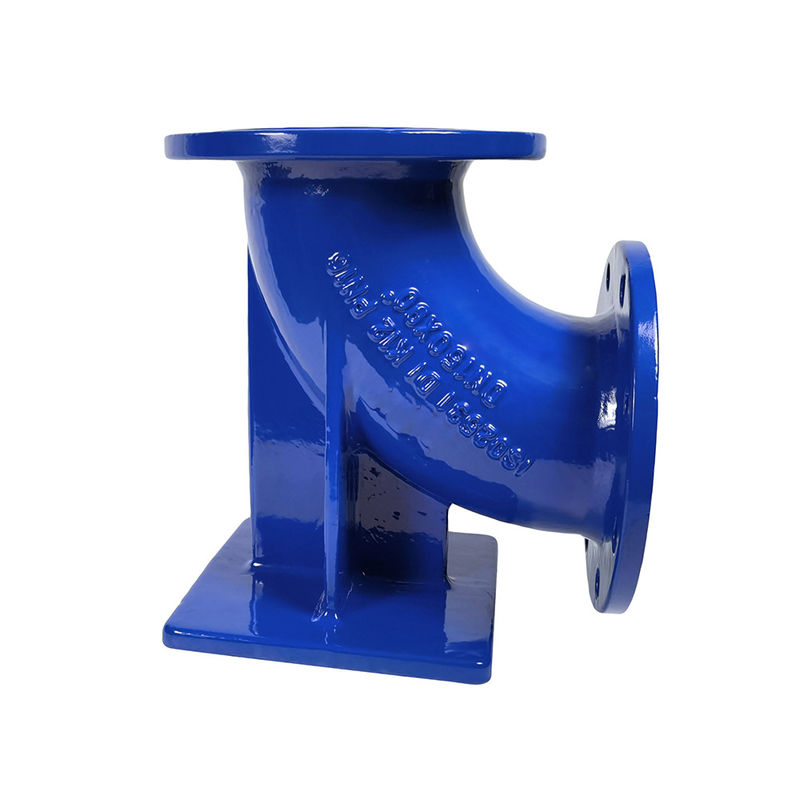

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16

cast iron double flanged duckfoot bend

90 degree double flanged duckfoot bend

pn16 double flanged duckfoot bend

Place of Origin:

China

Brand Name:

Jhy

Certification:

CE;SGS;ISO;TUV

Model Number:

Double Flanged Duckfoot Bend 90 Degree

Request A Quote

Product Details

Product Name:

Double Flanged Duckfoot Bend 90 Degree

Connection:

Flange Ends

Material:

Ductile Iron

Size:

DN80-2600mm

Color:

Blue

Medium:

Water

Customized Support:

OEM, ODM

Body Material:

Ductile Cast Iron

Pressure:

PN10/PN16/PN25/PN40

Application:

Fresh Water, Sewerage, Firefighting Pipeline

Standard:

ISO2531/EN545/EN598

Warranty:

2 Years

Payment & Shipping Terms

Minimum Order Quantity

10 Piece

Price

USB 39.9 Piese

Packaging Details

Standard export packing, plastic bag, woven bag, wooden case, or as required.

Delivery Time

3~8 work days

Payment Terms

L/C, T/T

Supply Ability

10 Pieces 5~8 days

Double Flanged Duckfoot Bend 90 Degree

Name: Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16
Brand: Jhy
SKU: Double Flanged Duckfoot Bend 90 Degree
Price: 39.9 USD
Availability: InStock
Rating: 4.7 (181 reviews)

Product Description

Flange end connections according to EN1092-2: PN10/PN16
Designed according to EN545
Maximum working pressure: PN16 / 16 bar
Working temperature: 0°C - +70°C
Color RAL5015
Powder epoxy coating 250 μm thickness
Body from ductile iron EN-GJS-500-7
WRAS approved epoxy coating,
ACS approved epoxy coating under request

TECHNICAL CHARACTERISTICS

Products Name:	Double Flanged Duckfoot Bend 90 Degree
Manufacturing Standard:	ISO 2531 EN545/598 AWWA C110/C153
Material:	Ductile iron 500-7/450-12 as per ISO 1083
Class:	K12, K14 for Tee and Cross
Wall Thickness Calculation:	e=K(0.5+0.001DN)
Type of joint:	Flanged/Push-in(Tyton)/Mechanical(K)/Restrained/PVC
Flange drilling:	ISO 7005-2/EN1092-2

Chemical analysis:	C: 3.4-3.9% Si: 2.5-3.0% Mn: ≤0.4% S: ≤0.02% P: ≤0.08% Mg: 0.02-0.06% RE: 0.02-0.04%

Mechanical Properties:	Tensile strength:	≥420 N/mm²
	Yield strength:	≥300 N/mm²
	Elongation:	≥5 %
	Brinell hardness:	≤250 HB

Linning:	Standard:	ISO 4179
	Material:	Cement mortar lining(G.P./S.R./H.A.) Fusion bonded epoxy Painting Epoxy PU

Coating:	Standard:	ISO 8179
	Material:	Zinc&Bitumen Fusion bonded epoxy Painting Epoxy PU

Marking:	Casted on body:	Logo Standard DI Size Class&Pressure Month & year of manufacture

Inspection Standard:	ISO 2531 EN545/598 AWWA C110/C153

Company Profile

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 0

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 1

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 2

Real factory scene

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 3

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 4

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 5

Products Show

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 6

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 7

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 8

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 9

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 10

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 11

Packing & Delivery

Standard export packing, plastic bag, woven bag, wooden case, or as required.
Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 12

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 13

Certifications

Cast Iron Double Flanged Duckfoot Bend 90 Degree Painting Epoxy Pn16 16

FAQ
1. who are we?
We are based in Hebei, China, start from 2011,sell to Domestic Market(25.00%),Africa(15.00%),South America(10.00%),South Asia(10.00%),Southeast Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),Eastern Asia(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Valves,Castings,Pipeline Accessories,Fire Fighting Equipments,Valve Parts
4. why should you buy from us not from other suppliers?
1. 21 years experience in gate valve design and manufacturing 2. Self-owned foundry factory and valve factory assure the reliability of Jhy valves 3. Economic scale provides factory price 4. Market protection service 5. 24 hours after-sales team
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Arabic,French,Russian,Korean
