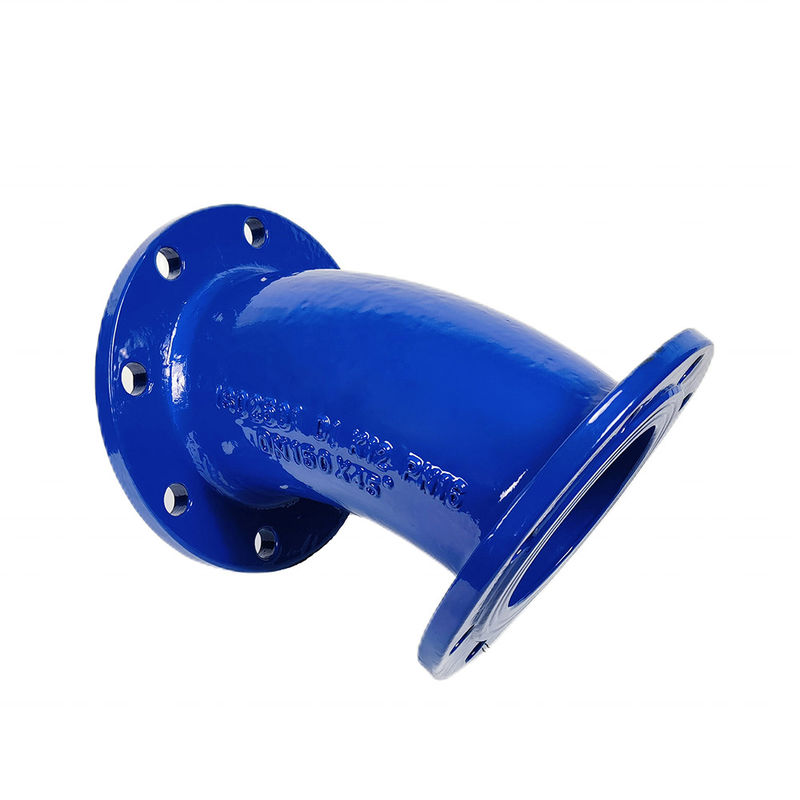

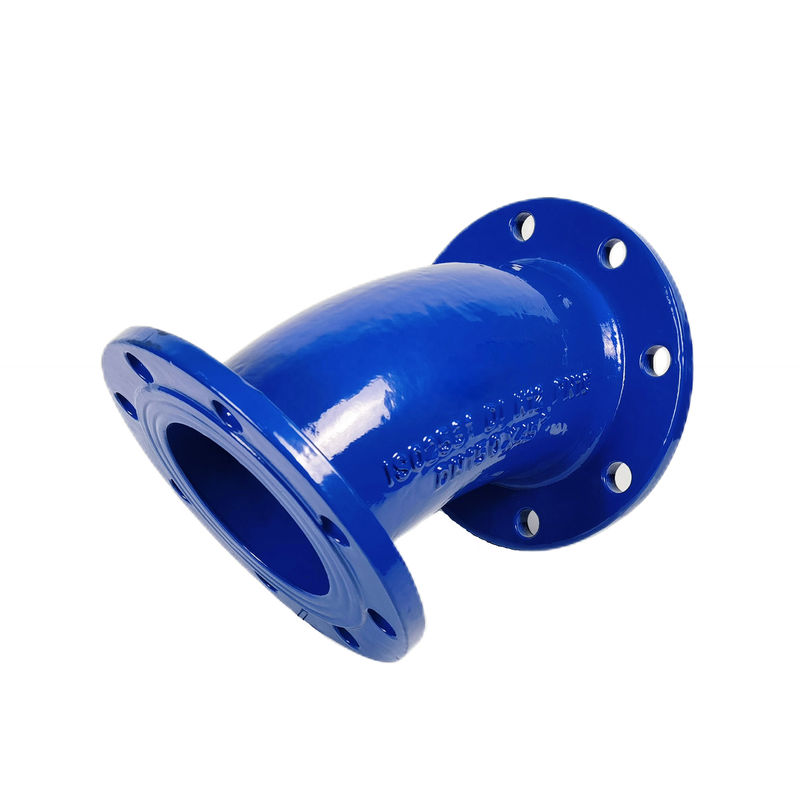

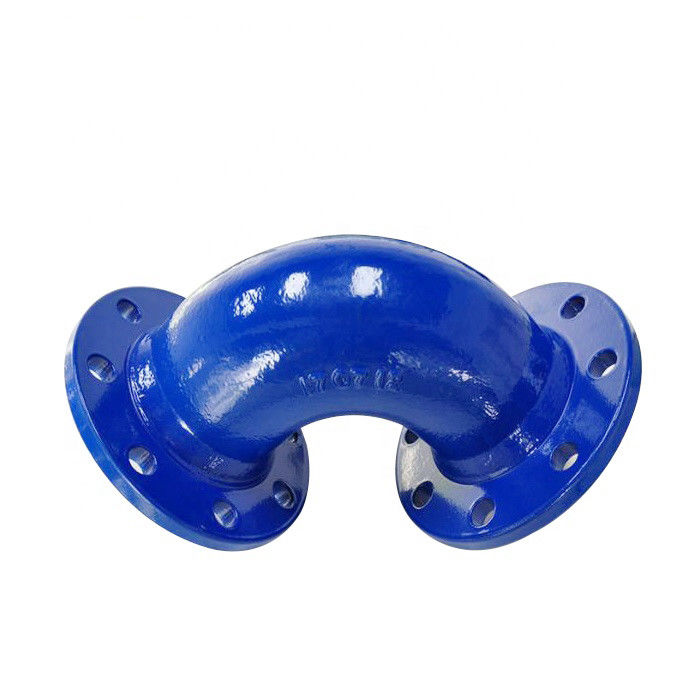

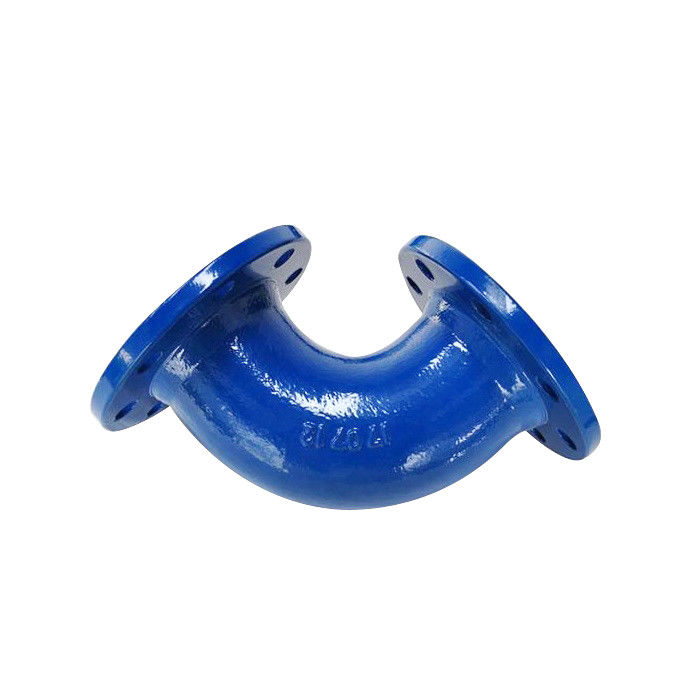

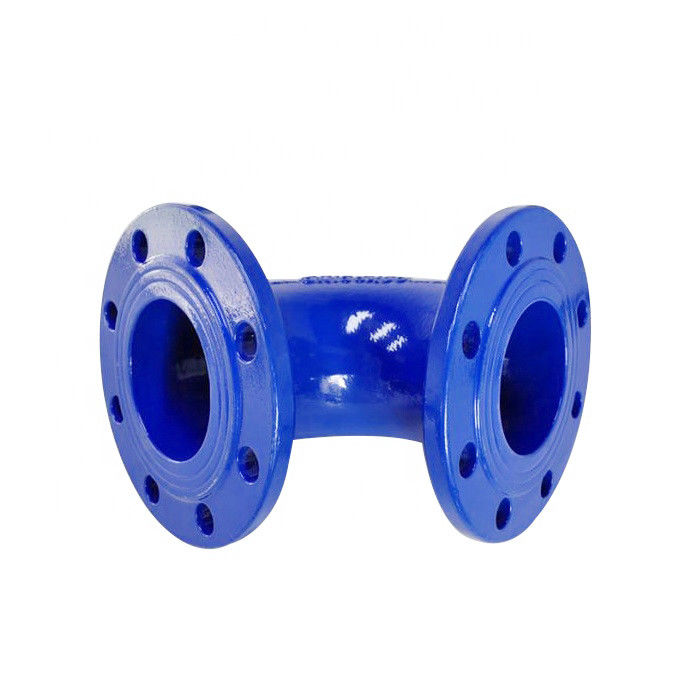

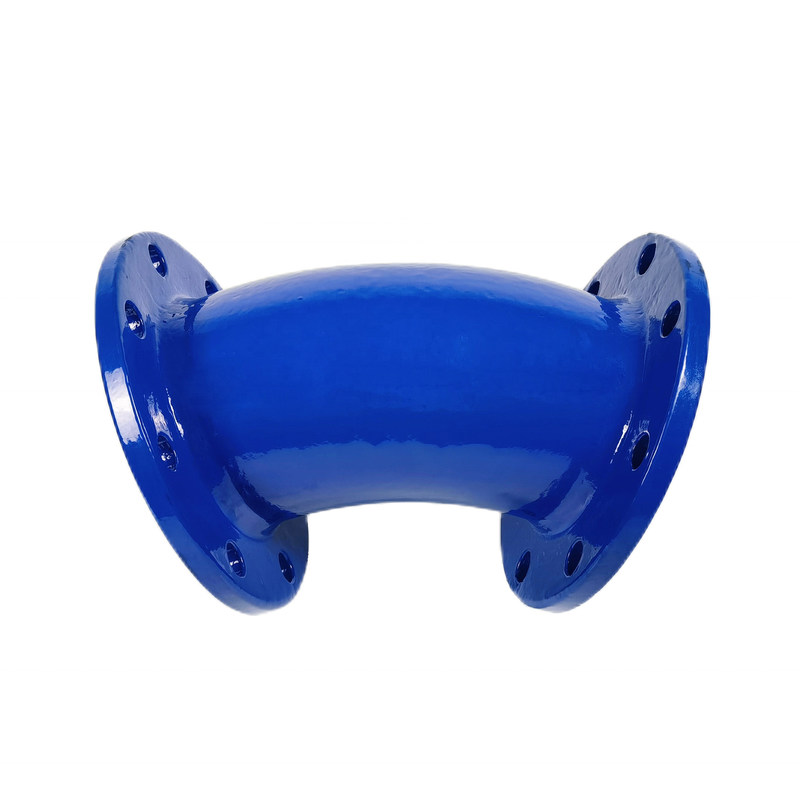

PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree

PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree

pn25 ductile iron pipe fittings

90degree bend ductile iron pipe fittings

pn25 double flanged bend

Place of Origin:

China

Brand Name:

Jhy

Certification:

CE;SGS;ISO;TUV

Model Number:

Double Flanged Bend 90/45 Degree

Contact Us

Request A Quote
Product Details
Product Name:
Ductile Iron Fittings Double Flanged Bend 90/45 Degree Pipe Fittings
Connection:
Flange Ends
Material:
Ductile Iron
Size:
DN80-2600mm
Color:
Blue
Medium:
Water
Customized Support:
OEM, ODM
Body Material:
Ductile Cast Iron
Pressure:
PN10/PN16/PN25/PN40
Application:
Fresh Water, Sewerage, Firefighting Pipeline
Standard:
ISO2531/EN545/EN598
Warranty:
2 Years
Payment & Shipping Terms
Minimum Order Quantity
10 Piece
Price
USB 39.9 Piese
Packaging Details
Standard export packing, plastic bag, woven bag, wooden case, or as required.
Delivery Time
3~8 work days
Payment Terms
L/C, T/T
Supply Ability
10 Pieces 5~8 days
RELATED PRODUCTS
Contact Us
86-317-8030-499
Contact Now
Product Description



Ductile Iron Fittings Double Flanged Bend 90/45 Degree Pipe Fittings



Product Description

JHY's products strictly conform to the following standards:
* ISO 2531 for ductile iron pipes, fittings and accessories for pressure pipelines.
* BS EN 545 for ductile iron pipes, fittings, accessories and their joints for water pipelines. Includes requirements and test methods.
* BS EN 598 for ductile iron pipes, fittings, accessories and their joints for sewage application. Includes requirements and test methods.
* ISO 4179 for centrifugal cement mortar lining of ductile iron pipes for pressure and non-pressure pipelines. Includes general requirements.
* ISO 8179 for external zinc coating of ductile iron pipes.
* ISO 4633 for rubber seals and joint rings for water supply, drainage and sewerage pipelines. Includes material specifications.
Gaskets and fasteners can be supplied according to customers' requirements. Customized dimensional ductile iron fittings are also available.



TECHNICAL CHARACTERISTICS

Products Name:
Double flanged bend
Manufacturing Standard:
ISO 2531 EN545/598 AWWA C110/C153
Material:
Ductile iron 500-7/450-12 as per ISO 1083
Class:
K12, K14 for Tee and Cross
Wall Thickness Calculation:
e=K(0.5+0.001DN)
Type of joint:
Flanged/Push-in(Tyton)/Mechanical(K)/Restrained/PVC
Flange drilling:
ISO 7005-2/EN1092-2

Chemical analysis:
C: 3.4-3.9%
Si: 2.5-3.0%
Mn: ≤0.4%
S: ≤0.02%
P: ≤0.08%
Mg: 0.02-0.06%
RE: 0.02-0.04%

Mechanical Properties:
Tensile strength:
≥420 N/mm²

Yield strength:
≥300 N/mm²

Elongation:
≥5 %

Brinell hardness:
≤250 HB

Linning:
Standard:
ISO 4179

Material:
Cement mortar lining(G.P./S.R./H.A.)
Fusion bonded epoxy
Painting Epoxy
PU

Coating:
Standard:
ISO 8179

Material:
Zinc&Bitumen
Fusion bonded epoxy
Painting Epoxy
PU

Marking:
Casted on body:
Logo
Standard
DI
Size
Class&Pressure
Month & year of manufacture

Inspection Standard:
ISO 2531 EN545/598 AWWA C110/C153









Company Profile



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 0



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 1



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 2



Real factory scene



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 3



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 4



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 5


Products Show



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 6



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 7



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 8



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 9



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 10


Packing & Delivery



Standard export packing, plastic bag, woven bag, wooden case, or as required.
PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 11



PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 12
PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 13
PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 14


Certifications

PN25 Ductile Iron Pipe Fittings Double Flanged Bend 90/45 Degree 15

FAQ
1. who are we?
We are based in Hebei, China, start from 2011,sell to Domestic Market(25.00%),Africa(15.00%),South America(10.00%),South Asia(10.00%),Southeast Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),Eastern Asia(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Valves,Castings,Pipeline Accessories,Fire Fighting Equipments,Valve Parts
4. why should you buy from us not from other suppliers?
1. 21 years experience in gate valve design and manufacturing 2. Self-owned foundry factory and valve factory assure the reliability of Jhy valves 3. Economic scale provides factory price 4. Market protection service 5. 24 hours after-sales team
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Arabic,French,Russian,Korean
