DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron

DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron

elastic ansi gate valve

elastic ansi gate valve Rising Stem

elastic ansi Rising Stem gate valve

Place of Origin:

China

Brand Name:

JHY

Model Number:

JHY-GV-GS

Contact Us

Request A Quote
Product Details
Warranty:
3 Years
Temperature Of Media:
Medium Temperature
Media:
Water
Standard Or Nonstandard:
Standard
Usage:
Water Oil Gas
Product Name:
Gate Valve
Operation:
Hand Wheel
Color:
Red,blue
Payment & Shipping Terms
Minimum Order Quantity
10 Piece
Price
Negotiable
Packaging Details
Standard export packing, plastic bag, woven bag, wooden case, or as required.
Delivery Time
3~8 work days
Payment Terms
L/C, T/T
Supply Ability
10 Pieces 5~8 days
RELATED PRODUCTS
Contact Us
86-317-8030-499
Contact Now
Product Description
Cast Iron DIN3352 F4 Soft Sealing Elastic Seat DN100 Rising Stem Gate Valve

Product Description
Rising stem gate valves are commonly used in various industries, including oil and gas, water treatment, power generation, chemical processing, and more. They are suitable for applications where precise control, visual indication of valve status, and reliable sealing performance are required.
  1. Bonnet arrangement: Rising stem gate valves typically feature a bonnet that houses the stem and provides a seal to prevent leakage. The bonnet can be of different designs, such as bolted bonnet, pressure seal bonnet, or welded bonnet, depending on the pressure and temperature requirements of the application.

  2. Bi-directional flow: Rising stem gate valves are designed to allow flow in both directions, making them suitable for applications where the flow direction may change.

  3. Tight shut-off: Rising stem gate valves are known for their ability to provide a tight shut-off when fully closed. The gate comes into contact with the seat, creating a seal that prevents any leakage.


Main Feature:
1. Ductile iron
2. EPDM, vulcanization pressure technology
3. Spray coating approved by WRAS
Product Name
Material



Valve Body
 Ductile iron GGG50



 Disc
Ductile iron, overall EPDM coating



Stem
45# chrome-plated steel



Seat
EPDM + GGG50



Coating
 WRAS approved epoxy, at least 250 micron thick

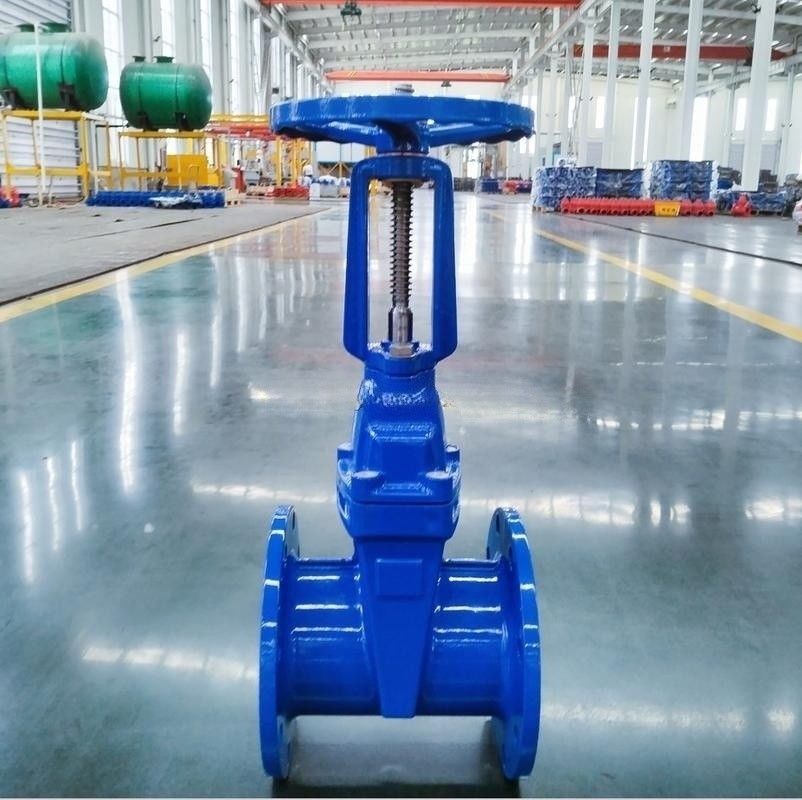

DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron 0

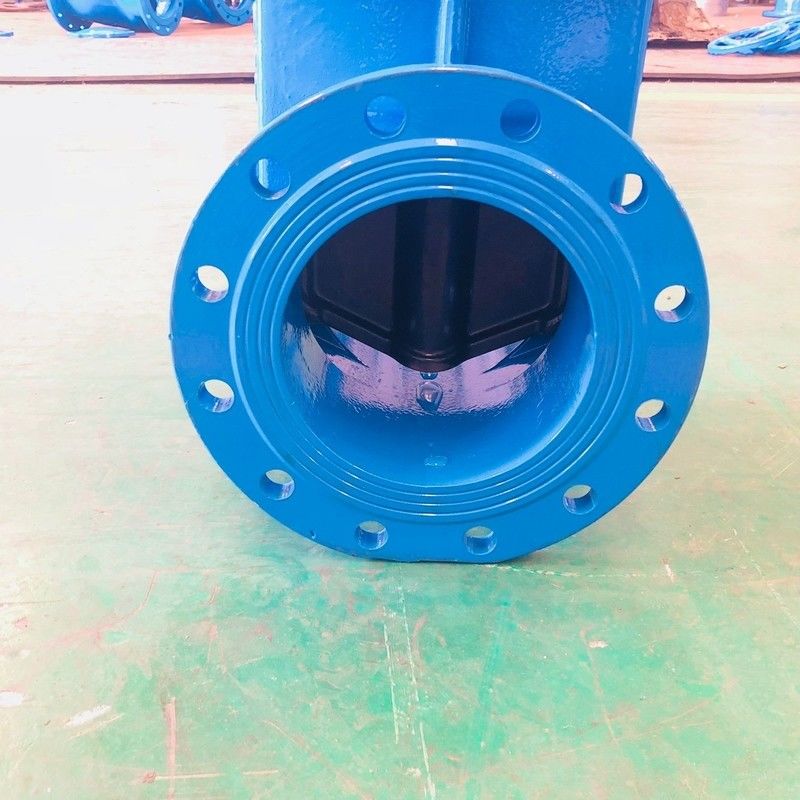

DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron 1

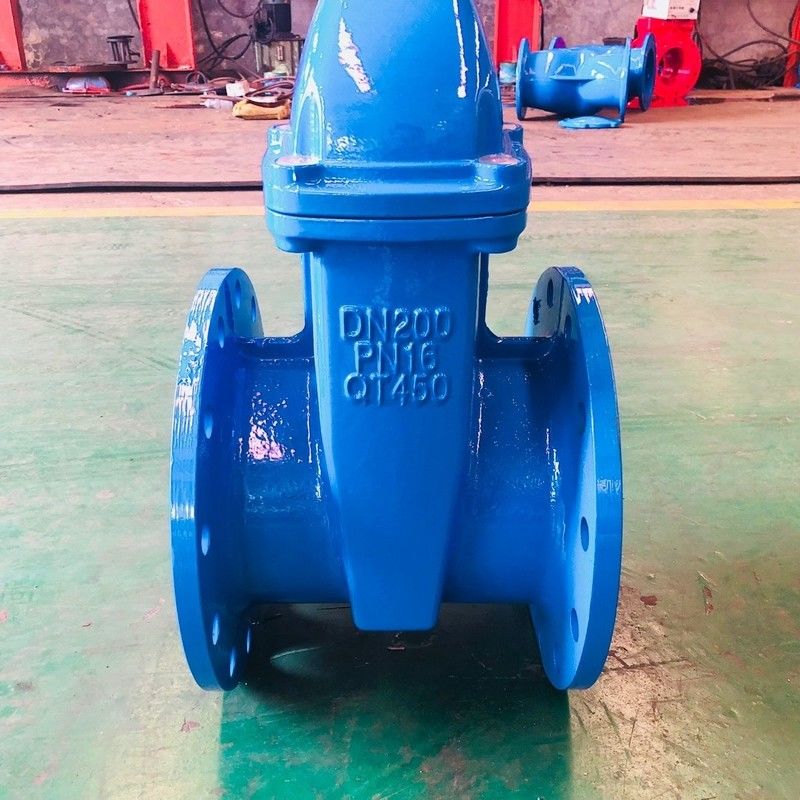

DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron 2

Our company

DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron 3


Real certificate
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron 4
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron 5
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron 6
DIN3352 F4 Elastic Seat Rising Stem Valve DN100 Gate Valve Cast Iron 7
CE WRAS ISO9001 ISO14001
