Place of Origin:
China
Brand Name:
Jhy
Contact Us

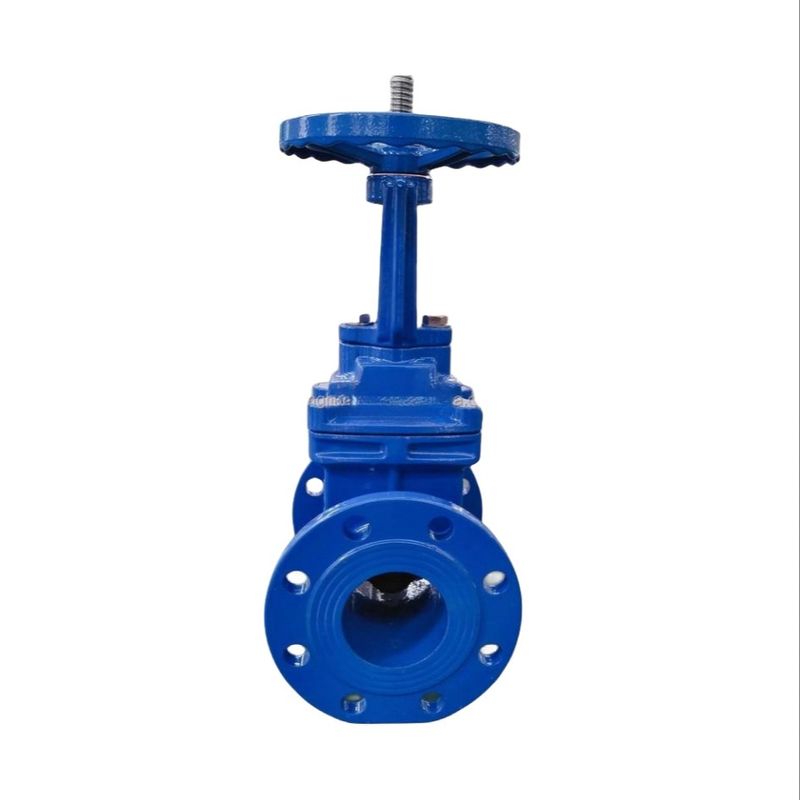

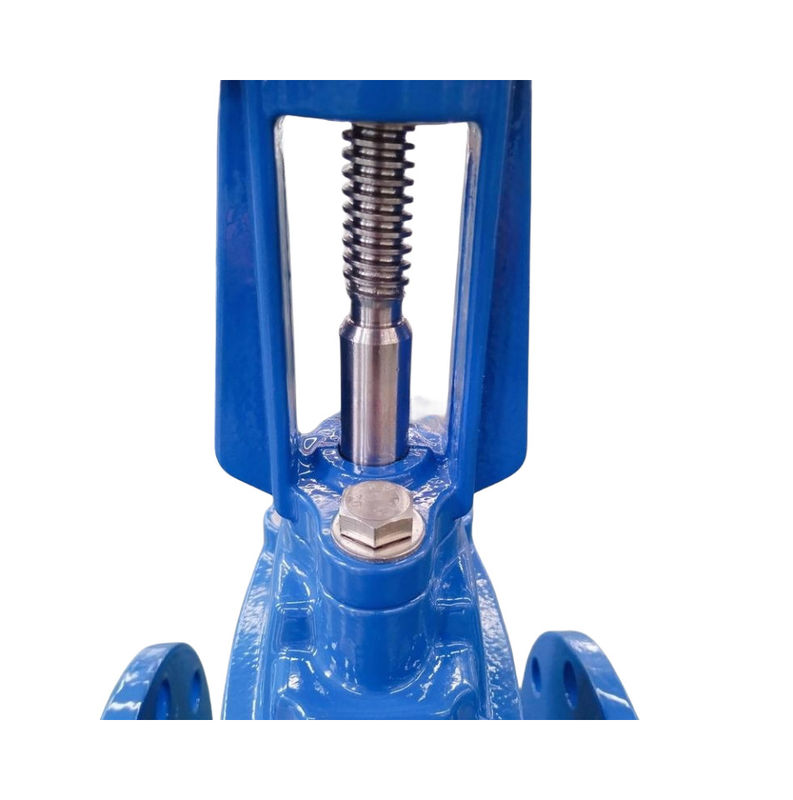

Pn10 PN16 BS5163 Din F4 Nrs Resilient Seated Gate Valve With Flanged Ends
Resilient seated: "Resilient seated" refers to the type of sealing arrangement used in the gate valve. Resilient seated gate valves have a rubber or elastomeric seat that provides a tight seal against the gate, ensuring reliable shut-off and preventing leakage when the valve is closed. The resilient seat also offers flexibility, allowing it to compensate for slight misalignments or deformations in the valve components.
Gate valve: A gate valve is a type of valve that uses a sliding gate or disc to control the flow of fluid through a pipeline. When the valve is fully open, the gate is raised, providing unobstructed flow. When the valve is closed, the gate is lowered, blocking the flow and creating a tight seal against the seat.
Warranty
|
2 years
|
Customized support
|
OEM, ODM, OBM
|
Place of Origin
|
China Hebei
|
Brand Name
|
Jhy
|
Application
|
General
|
Temperature of Media
|
Medium Temperature
|
Power
|
Manual
|
Media
|
Water
|
Port Size
|
2''-48''
|
Product name
|
Gate valve
|
Body material
|
Ductile Iron
|
Connection
|
Flange Ends
|
Size
|
DN40-DN1200
|
Color
|
Customer's Request
|
Standard or Nonstandard
|
Standard
|
Usage
|
Water;Oil;Gas
|
