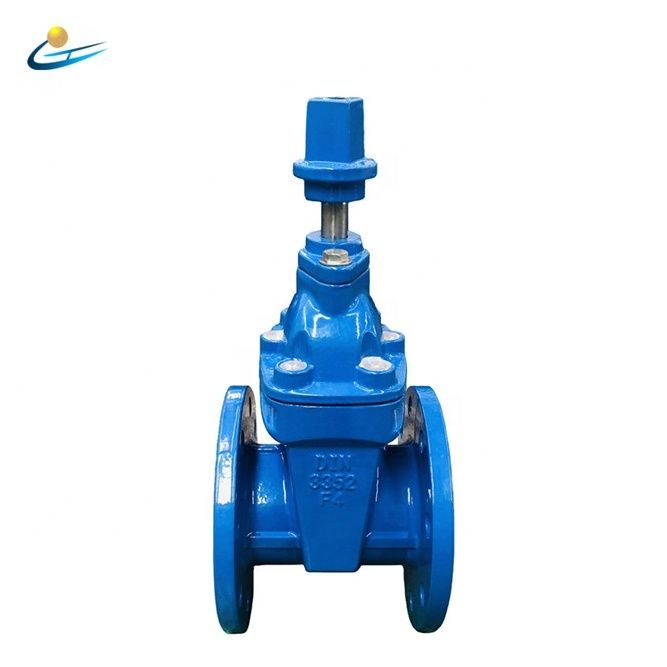

Threaded Flanged Sluice Gate Valve Ductile Iron Valve 2-12 Inch

Threaded Flanged Sluice Gate Valve Ductile Iron Valve 2-12 Inch

flanged Sluice Gate Valve

Sluice Gate Valve Ductile Iron

Threaded Ductile Iron Valve

Place of Origin:

China

Brand Name:

JHY

Model Number:

DN100

Contact Us

Request A Quote
Product Details
Valve Size:
2-12 Inch
Valve Temperature Rating:
200-400°F
Valve Sealing:
EPDM/NBR
Valve Coating:
Fusion Bonded Epoxy
Valve Certification:
UL/FM Approved
Valve Pressure Test:
Hydrostatic Test
Valve End Connection:
Threaded/Flanged
Valve Body Material:
Ductile Iron
Payment & Shipping Terms
Minimum Order Quantity
10 Piece
Packaging Details
Standard export packing, plastic bag, woven bag, wooden case, or as required.
Delivery Time
3~8 work days
Payment Terms
L/C, T/T
Supply Ability
10 Pieces 5~8 days
RELATED PRODUCTS
Contact Us
86-317-8030-499
Contact Now
Product Description

Threaded/Flanged Ductile Iron Soft Seal Sluice Gate Valve





Product Description:

Underground Gate Valve is a square hand gate valve certified by UL/FM, with a Fusion Bonded Epoxy coating, available in size 2-12 Inch and with threaded/flanged end connection. It is also known as F4 DIN Underground Gate Valve, or Soft Seal Sluice Gate Valve, and it is designed for underground flanged connection. It is a reliable, secure and durable valve that provides a tight seal for underground applications.



Features:

  • Product Name: Soft seal Flange End Ductile Iron Underground Gate Valve, f4 din underground gate valve, Cast Iron Underground Gate Valve, ANSI/AWWA C515 Underground Gate Valve.
  • Valve Warranty: 1 Year
  • Valve Sealing: EPDM/NBR
  • Valve Leakage Test: Air Pressure Test
  • Valve Coating: Fusion Bonded Epoxy
  • Valve Certification: UL/FM Approved


Technical Parameters:

Parameters Details
Valve Size 2-12 Inch
Valve Type Cast Iron Underground Gate Valve, Resilient Seat Flange End Underground Gate Valve, Soft Seal Sluice Gate Valve
Valve Pressure Test Hydrostatic Test
Valve Sealing EPDM/NBR
Valve Pressure Rating 200-300 PSI
Valve Operation Type Manual
Valve Temperature Rating 200-400°F
Valve Leakage Test Air Pressure Test
Valve Coating Fusion Bonded Epoxy
Valve Certification UL/FM Approved


Applications:

Underground Gate Valve, brand name JHY, model DN100, is a robust and reliable valve solution designed for underground usage. It is made of durable cast iron, with a square nut operation design and a soft seal flange end. It comes with a Fusion Bonded Epoxy coating that ensures a perfect seal and no leakage. This underground water valve is suitable for sizes between 2-12 inch and a pressure rating of 200-300 PSI. It has both Threaded and Flanged connection ends for easy installation. This underground resilient gate valve with square nut cap is perfect for underground water system applications.



Customization:

Underground Gate Valve

Brand Name: JHY

Model Number: DN100

Place of Origin: Hebei, China

Valve Connection Type: Flanged

Valve Leakage Test: Air Pressure Test

Valve Size: 2-12 Inch

Valve Certification: UL/FM Approved

Valve Pressure Rating: 200-300 PSI

Our underground gate valve is specifically designed for underground installation. We offer F4 DIN underground gate valves, cast iron underground gate valves and soft seal flange end ductile iron underground gate valves. All our underground gate valves are UL/FM approved.



Support and Services:

Underground Gate Valve Technical Support and Services

Our company provides comprehensive technical support and services for our Underground Gate Valves. Our knowledgeable and experienced team of specialists can help you:

  • Troubleshoot installation and operational issues
  • Evaluate and optimize valve performance
  • Provide technical advice on design and selection
  • Offer emergency repair services
  • Provide spare parts and components
  • Carry out regular maintenance and inspections

For more information on our Underground Gate Valve technical support and services, please contact us today.



Packing and Shipping:

Packaging and Shipping

Underground Gate Valves are packaged and shipped in reinforced wooden cases that are designed to protect the valves from damage during shipping and handling. The cases are sealed and labeled with the customer's name and address, as well as the type of valve. All valves are shipped with an instruction manual that includes information on installation, operation and maintenance.
