DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat

DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat

DN150 Non Rising Stem Gate Valve

DN65 Non Rising Stem Gate Valve

Gate Valve Flange End Rubber Seat

Place of Origin:

China

Brand Name:

JHY

Certification:

ISO;CE;TUV;SGS

Model Number:

DN150

Contact Us

Request A Quote
Product Details
Size:
DN65
Certificate:
DIN
Product Name:
Non Rising Stem Gate Valve
Usage:
Water
Package:
Bag
Color:
Blue
Payment & Shipping Terms
Minimum Order Quantity
10 Piece
Price
300-445
Packaging Details
Standard export packing, plastic bag, woven bag, wooden case, or as required.
Delivery Time
3~8 work days
Payment Terms
L/C, T/T
Supply Ability
10 Pieces 5~8 days
RELATED PRODUCTS
Contact Us
86-317-8030-499
Contact Now
Product Description

Factory price Flange End Rubber Seat Non rising stem gate valve



Real product show

Non-rising Stem Gate Valve is a type of gate valve commonly used in wastewater systems. It is made of ductile iron, which provides strength and durability. This gate valve is designed to control the flow of wastewater by raising or lowering a gate mechanism. With its non-rising stem feature, the valve operates vertically without extending out of the valve body, making it suitable for tight spaces or underground installations. These wastewater gate valves are known for their reliable performance and ability to handle the demands of sewage and wastewater applications.



Application General
Power Manual
Structure Gate
Customized Support OEM, ODM
Place of Origin Hebei, China
Warranty 2 years
Brand Name JHY
Model Number JHY-GV-GS
Temperature of Media Medium Temperature
Media Water
Port Size 2"-24"
Standard or Nonstandard Standard
Material Ductile Iron
Connection Flange Ends
Color Customized Color
Usage Water Oil Gas
Product Name Gate valve
Certification CE, TUV, ISO, SGS

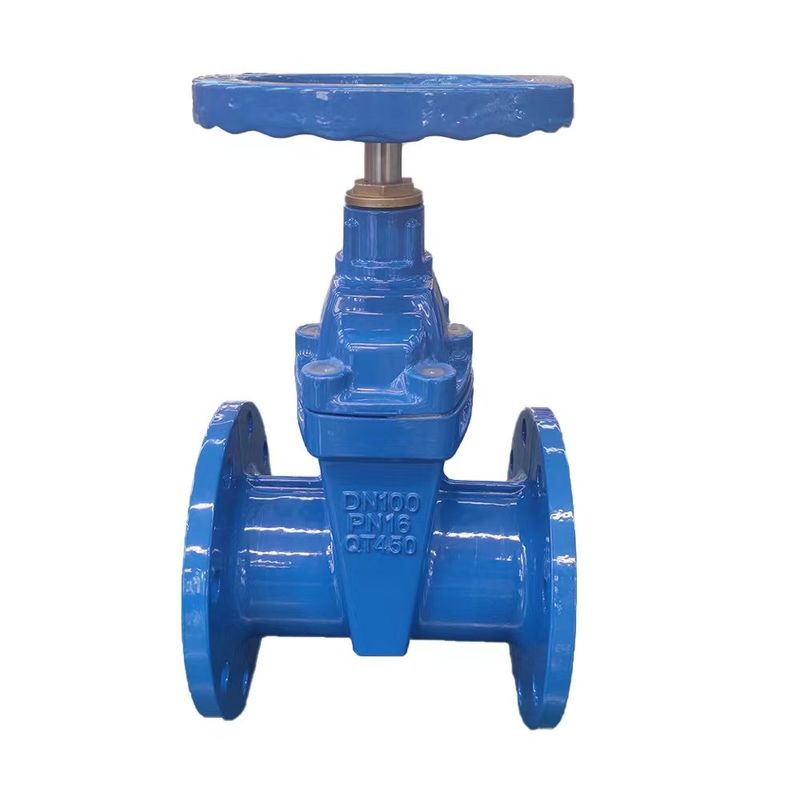

DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 0

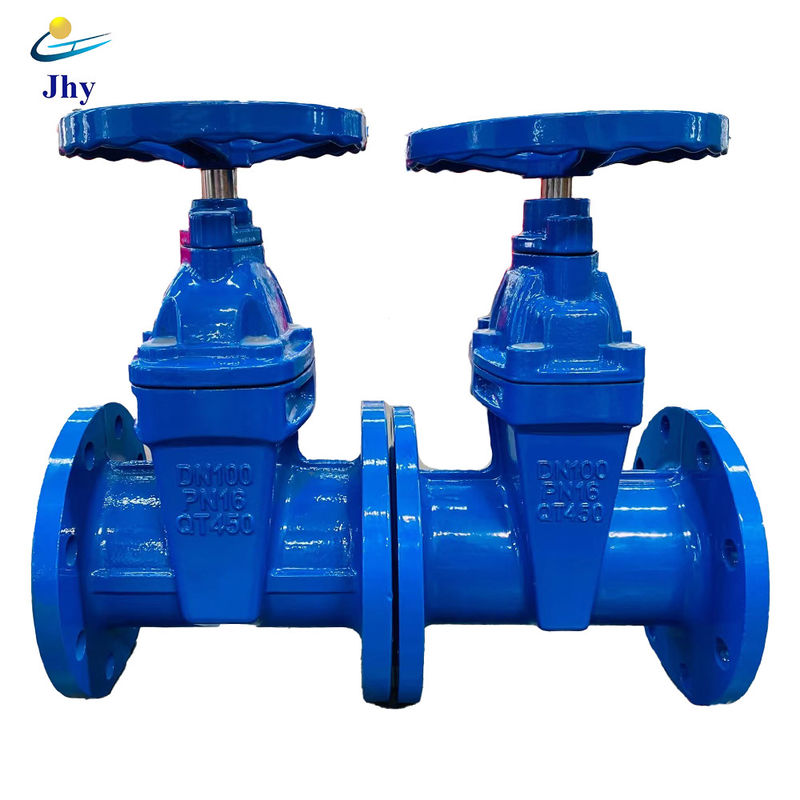

DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 1



Company Profile

Our gate valve factory has an in-house foundry for casting valve bodies and bonnets, a machining workshop for part fabrication, and two production workshops for valve assembly. We conduct all essential manufacturing and testing in-house, ensuring stringent quality control. With integrated production facilities, we can manufacture 150,000 gate valves per year from 2" to 48" valve sizes. Our one-stop production allows us to effectively meet client gate valve requirements

DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 2







Real Factory Scene



DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 3



DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 4



DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 5



DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 6



Real Customer Comments



DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 7

Real Certificate



DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 8



Packing Details

  • Standard export packing, plastic bag, woven bag, wooden case, or as required.

DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 9



DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 10



DN65 DN150 Non Rising Stem Gate Valve Flange End Rubber Seat 11



FAQ

Q: What is a non-rising stem gate valve?
A: A non-rising stem gate valve is a type of valve that uses a threaded stem rather than a rising stem to control the flow of fluid through a pipe. The stem does not move up or down as the valve is opened or closed.

Q: How does a non-rising stem gate valve work?
A: In a non-rising stem gate valve, the threaded stem is attached to a gate disc inside the valve body. When the stem is turned clockwise, the gate disc is lowered, allowing fluid to flow through the valve. When the stem is turned counterclockwise, the gate disc is raised, closing off the flow of fluid.

Q: What are the advantages of using a non-rising stem gate valve?
A: Non-rising stem gate valves have several advantages. Firstly, they require less vertical space compared to rising stem gate valves, making them suitable for installations with limited overhead clearance. Secondly, they are less prone to damage in high vibrations or tight spaces since the stem does not extend above the valve body. Additionally, non-rising stem gate valves are easier to install and maintain due to their compact design.

Q: When should I use a non-rising stem gate valve?
A: Non-rising stem gate valves are commonly used in applications where vertical space is limited, such as underground pipelines, tight spaces, or installations with low overhead clearance. They are also preferred in areas with high vibrations where a rising stem could be prone to damage.

Q: Are there any limitations to using non-rising stem gate valves?
A: While non-rising stem gate valves have advantages, they also have limitations. One limitation is that the position of the gate disc cannot be visually determined without additional indicators since the stem does not move visibly. Additionally, non-rising stem gate valves may require more torque to operate compared to rising stem gate valves, depending on the design.

Q: What materials are non-rising stem gate valves made of?
A: Non-rising stem gate valves can be made of various materials depending on the application requirements. Common materials include stainless steel, carbon steel, cast iron, bronze, and ductile iron. The choice of material depends on factors such as the type of fluid, temperature, and pressure.

Q: How should I maintain a non-rising stem gate valve?
A: Regular maintenance of a non-rising stem gate valve is essential to ensure its reliable operation. This may include periodic lubrication of the stem threads, inspection of the gate disc and sealing surfaces for wear or damage, and addressing any leaks or abnormal valve performance promptly. It is also important to follow the manufacturer's guidelines and recommendations for maintenance procedures and intervals.

Q: Can non-rising stem gate valves be used for regulating flow?
A: Non-rising stem gate valves are primarily designed for on-off service, meaning they are used to either fully open or fully close the flow of fluid. They are not typically used for precise flow regulation due to the limited visibility of the gate disc position and the potential for increased torque requirements. For flow regulation, other valve types such as globe valves or butterfly valves are often preferred.

Q: What can I get from cooperating with Jhy?
1. Unique valves, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
