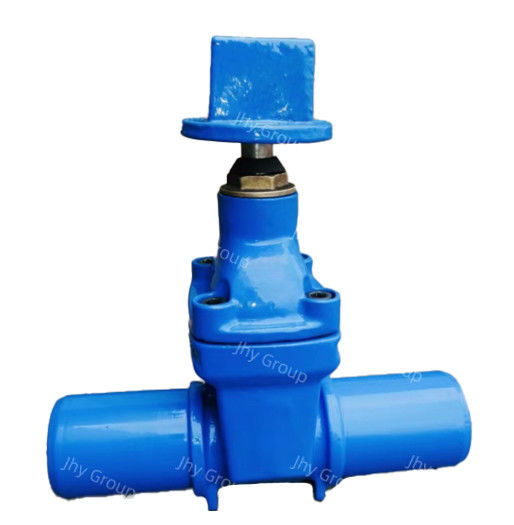

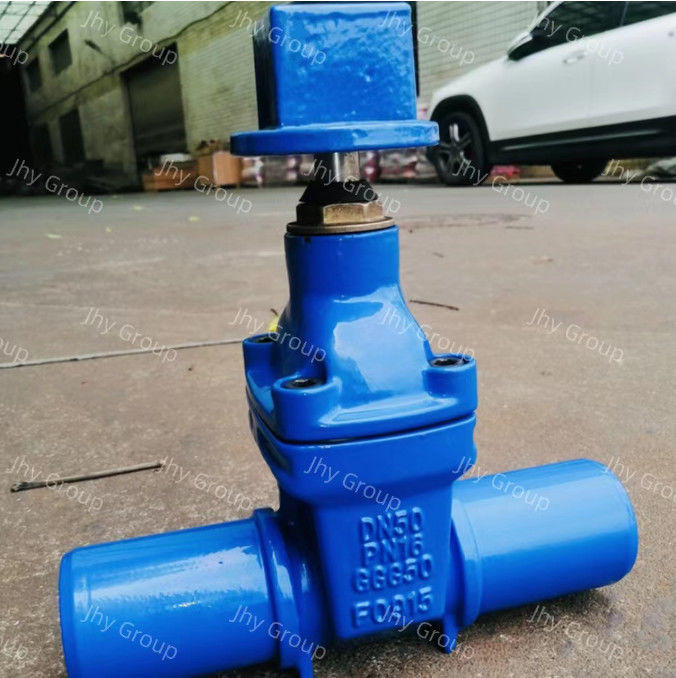

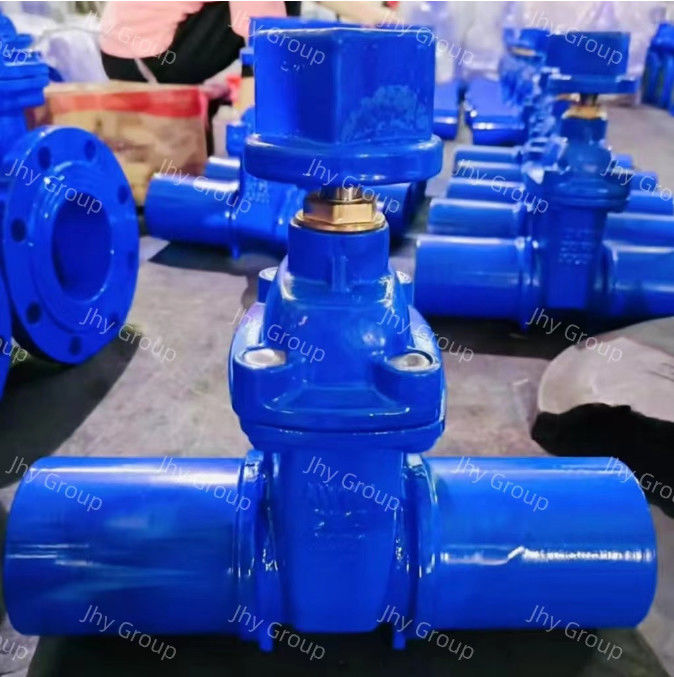

Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End

Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End

Rubber Seat Socket Gate Valve

Resilient Socket Gate Valve

Plain End Gate Valve Ductile Iron

Place of Origin:

China

Brand Name:

Jhy

Certification:

ISO;CE;SGS;TUV

Contact Us

Request A Quote
Product Details
Product Name:
Gate Valve
Body Material:
Ductile Iron
Color:
Blue
Packing:
Customized Packing
Standard Or Nonstandard:
Standard
Usage:
Water;Oil;Gas
Payment & Shipping Terms
Minimum Order Quantity
10 Piece
Price
USB 39.9 Piese
Packaging Details
Standard export packing, plastic bag, woven bag, wooden case, or as required.
Delivery Time
3~8 work days
Payment Terms
L/C, T/T
Supply Ability
10 Pieces 5~8 days
RELATED PRODUCTS
Contact Us
86-317-8030-499
Contact Now
Product Description



Ductile Iron Resilient Seat Rubber Seat Socket Gate Valve

Ductile Iron Resilient Seat rubber seat Socket Gate Valve with plain end

Product Description



A ductile iron resilient seat rubber seat socket gate valve is a type of valve that is designed to control the flow of fluids through a pipe system. It is made from ductile iron, which is a type of cast iron that has been treated to enhance its strength and resistance to corrosion. The valve also features a resilient seat and rubber seat, which helps to provide a tight seal and prevent leakage.

The socket gate valve design allows for easy installation and removal, as it can be fitted directly onto the pipe using a socket connection. This type of valve is commonly used in water supply systems, wastewater treatment plants, and other applications where a reliable and durable valve is necessary.

The resilient seat and rubber seat of the valve help to provide a tight seal, even under high pressures and temperatures. This ensures that there is no leakage or loss of fluid through the valve. The rubber seat also helps to absorb vibrations and shocks, which can extend the lifespan of the valve and prevent damage.

Overall, the ductile iron resilient seat rubber seat socket gate valve is a reliable and durable option for controlling the flow of fluids in a pipe system. It offers a tight seal, easy installation, and resistance to corrosion, making it suitable for a wide range of applications.



The main feature of the socket type soft seal gate valve is to set two sockets at both ends of the valve, which form a socket connection with the pipe



Product Name Gate Valve
Valve Body Ductile Rron GGG50
Disc Ductile Rron,Overall EPDM Coating
Stem 45#Chrome-plated Steel
Seat EPDM+GGG50
Coating WRAS Approved Epoxy,At Least 250 Micron Thick
Warranty 2 years
Customized support OEM, ODM, OBM
Place of Origin China Hebei
Brand Name Jhy
Application General
Temperature of Media Medium Temperature
Power Manual
Port Size DN50-DN1200
Body material Ductile Iron
Usage Water;Oil;Gas
Product name Gate Valve




Our advantage



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 0

Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 1



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 2



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 3

Hebei JingHangYu Valve Manufacturing Co., Ltd is located in Botou City, China's "Home of Foundry". It is a professional production company devoted to valve research, development, production, marketing, technical consultation and after-sales service. The company covers an area of more than 50,000 square meters, currently employs more than 300 people, 15 technical engineers and two R&D teams. The annual production capacity is 20,000 tons of castings and 200,000 finished valves approximately. Jhy's main products include dozens series of water supply and drainage valves, HVAC valves, fire-fighting valves, industrial valves at more than 1,000 specifications. Valves adopt the ISO, ANSI, API, ASME, BS, DIN and JIS valve standards. There are more than 100 sales outlets in China, with perfect sales and after-sales networks, JingHangYu valves have been sold to worldwide. In order to become the best and most professional valve manufacturer, JingHangYu Company has established its own casting branch - Jing Hang Yu Foundry. Until now, there are three advanced molding lines in service: Japan Dongjiu Automatic Horizontal Modeling Line, with an inner diameter size at 580mm*610mm of the moulding flask; Weifang Kailong Automatic Static Pressure Horizontal Line, with an inner diameter size at 950mm*1000mm of the moulding flask; Shanghai Hongque Resin Sand Molding Production Line,with an inner diameter size at 2500mm*3000mm of the moulding flask. Additionally, it built material test laboratory, to test the casting's tensile force, metallographic, chemical composition. The weight of each produced casting can range from a few kilograms to hundreds of kilograms to a maximum of several tons. Castings are to meet self-demand, and meanwhile to satisfy different requirements of precision castings for customers. JingHangYu has a machining workshop: equipped with advanced special facilities such as CNC special-purpose lathes and CNC drilling machines. Spray workshop: equipped with three automatic spraying lines. Rubber workshop: equipped with automatic vulcanizing press and automatic laminating machine, the raw material is EPDM original rubber to ensure quality. Assembly workshop: equipped with more than twenty valve pressure test machines, every valve must undergo rigorous pressure test, and a valve flow detection line has been built for precise flow control. The company has employed domestic well-known technical consultants and established a scientific quality assurance system, which guarantee the reliable quality and beautiful outlook for every valve produced by JingHangYu. JingHangYu Company is always adhering to the principle: offering the best valves and services to our customers, taking the suggestions and requirements of customers as the goal of our improvement, and taking customer's satisfaction as the tenet of our services.



Real factory scene



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 4



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 5



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 6



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 7



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 8





Real product show





Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 9



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 10



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 11



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 12



Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 13



Real certificate


Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 14



Packing details



Standard export packing, plastic bag, woven bag, wooden case, or as required.


Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 15

Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 16

Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 17

Resilient Rubber Seat Socket Gate Valve Ductile Iron With Plain End 18

FAQ

1. What is a ductile iron resilient seat rubber seat socket gate valve?

A ductile iron resilient seat rubber seat socket gate valve is a type of valve used to control the flow of fluids in a pipe system. It is made of ductile iron and features a resilient seat and rubber seat, providing a secure seal and preventing leakage.



2. What are the advantages of ductile iron material?

Ductile iron is known for its strength, durability, and resistance to corrosion. It can withstand high pressures and temperatures, making it suitable for various applications.



3. What is the purpose of the resilient seat and rubber seat?

The resilient seat and rubber seat of the valve help ensure a tight seal, even under high pressures and temperatures. They also absorb vibrations and shocks, preventing damage to the valve and extending its lifespan.



4. Where are ductile iron resilient seat rubber seat socket gate valves commonly used?

These valves are commonly used in water supply systems, wastewater treatment plants, irrigation systems, and other industrial applications where a reliable and durable valve is required.



5. How is installation done with a socket connection?

The socket gate design allows for easy installation as the valve can be directly fitted onto the pipe using a socket connection. This saves time and effort compared to other types of connections.



6. Are these valves suitable for both high and low-pressure systems?

Yes, ductile iron resilient seat rubber seat socket gate valves are suitable for both high and low-pressure systems. They are designed to handle a wide range of pressures without compromising their performance.



7. How do I ensure proper maintenance and longevity of the valves?

Regular inspection, cleaning, and lubrication are essential for maintaining the valves. It is also important to follow the manufacturer's maintenance guidelines and replace any damaged or worn-out components promptly.



8. Can these valves be used for both liquids and gases?

Yes, ductile iron resilient seat rubber seat socket gate valves can be used for both liquids and gases. However, it is essential to ensure compatibility with the specific fluid or gas being transported through the system.
