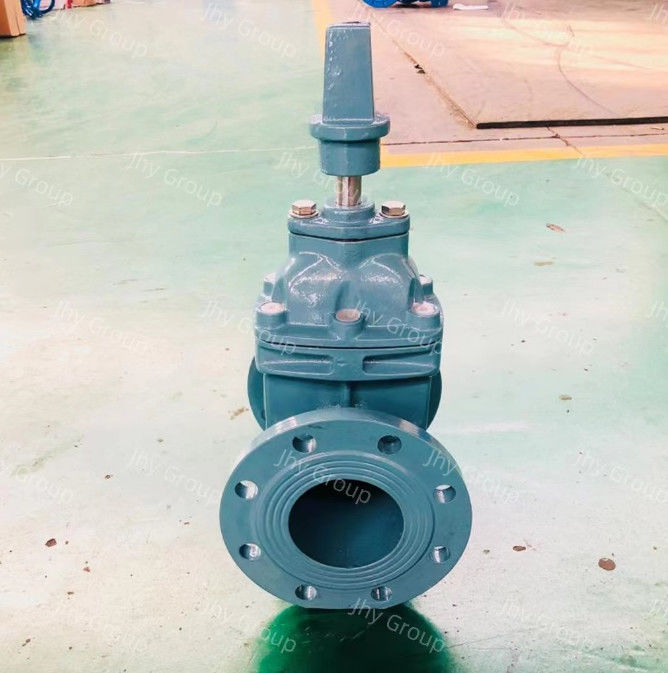

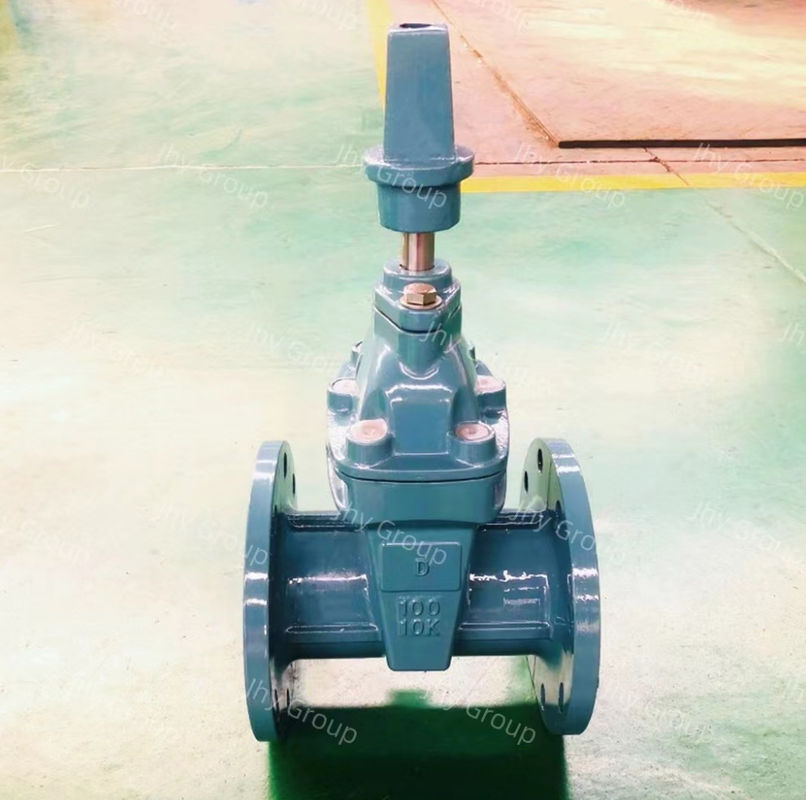

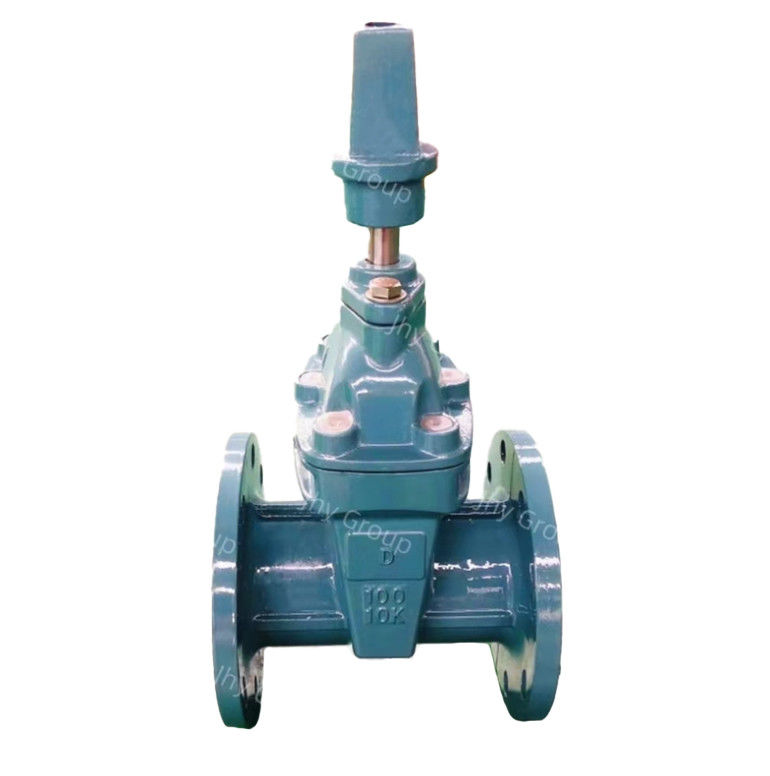

Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem

Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem

Ductile Iron Underground Gate Valve

Underground Gate Valve Resilient Seated

DI Gate Valve Non Rising Stem

Place of Origin:

China

Brand Name:

Jhy

Certification:

ISO;CE;SGS;TUV

Contact Us

Request A Quote
Product Details
Product Name:
Gate Valve
Body:
Ductile Iron
Pressure:
PN10
Color:
Red
Standard:
DIN
Size:
DN50
Payment & Shipping Terms
Minimum Order Quantity
10 Piece
Price
USB 39.9 Piese
Packaging Details
Standard export packing, plastic bag, woven bag, wooden case, or as required.
Delivery Time
3~8 work days
Payment Terms
L/C, T/T
Supply Ability
10 Pieces 5~8 days
RELATED PRODUCTS
Contact Us
86-317-8030-499
Contact Now
Product Description

Ductile Iron Non-Rising Stem Rubber Seat Resilient Seated Underground Gate Valve



Product Description

Gate valves can only be fully open or fully closed and cannot be used as valves for regulating flow Non rising stem gate valve, also known as rotary stem gate valve (also known as non rising stem wedge gate valve). The valve stem nut is located on the gate, and the rotation of the handwheel drives the valve stem to rotate, causing the gate to lift

Product Name Material
Valve Body Ductile Rron GGG50
Disc Ductile Rron,Overall EPDM Coating
Stem 45#Chrome-plated Steel
Seat EPDM+GGG50
Coating WRAS Approved Epoxy,At Least 250 Micron Thick
Warranty 2 years
Customized support OEM, ODM, OBM
Place of Origin China Hebei
Brand Name Jhy
Application General
Temperature of Media Medium Temperature
Power Manual
Port Size 2''-48''
Body material Ductile Iron
Usage Water;Oil;Gas
Product name Gate valve
复制

The Ductile Iron Non-Rising Stem Rubber Seat Resilient Seated Underground Gate Valve is a type of valve designed for underground pipeline systems. It is made of high-quality ductile iron, which provides excellent strength and durability. The non-rising stem design ensures smooth and efficient operation even in confined spaces.

This gate valve features a resilient rubber seat, which provides a tight seal and prevents leakage. The seat is designed to be easily replaceable, reducing maintenance time and cost. The gate valve has a wedge-shaped gate that moves up and down to control the flow of fluid through the pipeline.

The valve is suitable for a variety of applications such as water supply, sewage, irrigation, and industrial pipelines. It is designed to withstand high pressures and is resistant to corrosion, making it ideal for underground installations. The valve conforms to international standards and undergoes rigorous quality control to ensure its reliability and performance.

Key Features:

- Ductile iron construction for strength and durability

- Non-rising stem design for easy installation and space-saving operation

- Rubber seat for a tight seal and leak prevention

- Replaceable seat for easy maintenance

- Wedge-shaped gate for precise flow control

- Suitable for water supply, sewage, irrigation, and industrial applications

- Resistant to high pressure and corrosion

- Conforms to international standards and undergoes rigorous quality control

In conclusion, the Ductile Iron Non-Rising Stem Rubber Seat Resilient Seated Underground Gate Valve is a reliable and efficient valve designed for underground pipeline systems. Its durable construction, tight seal, and precise flow control make it an ideal choice for various applications.



Underground Gate Valve Advantage

1. Protection from environmental factors: Underground gate valves are protected from environmental factors such as weather conditions, vandalism, and accidental damage. They are buried underground, providing a barrier against external elements.

2. Aesthetically pleasing: Since underground gate valves are hidden underground, they do not disrupt the visual appeal of the surroundings. This is particularly beneficial in public areas or residential complexes where maintaining the aesthetics is important.

3. Space-saving: Underground gate valves do not take up any valuable surface space. They are installed below ground, freeing up space for other uses such as parking lots, landscaping, or recreational activities.

4. Easy maintenance: Underground gate valves are generally easier to maintain than above-ground valves. They are protected from external elements, reducing the risk of damage or corrosion. Additionally, they can be accessed through underground access points, making maintenance and repair work more convenient.

5. Reduced noise pollution: Underground gate valves help minimize noise pollution. Since they are buried underground, any noise generated by the valve operation is muffled, resulting in a quieter environment.

6. Increased safety: Underground gate valves contribute to increased safety levels. Being underground and hidden from plain sight, they are less likely to be tampered with or manipulated by unauthorized individuals, thus reducing the risk of accidents or water supply disruptions.

Overall, the use of underground gate valves offers numerous advantages in terms of protection, aesthetics, space-saving, maintenance, noise reduction, and safety.



Our Advantage



Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 0

Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 1



Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 2


Real Factory Scene



Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 3



Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 4



Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 5



Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 6




Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 7


Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 8


Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 9


Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 10

Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 11

Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 12

Real Certificate


Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 13

Packing Details

Standard export packing, plastic bag, woven bag, wooden case, or as required.
Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 14

Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 15

Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 16

Ductile Iron Underground Gate Valve Resilient Seated Non Rising Stem 17

FAQ



Q: How many factories do Jhy have?

A: Three factories under Jhy company: foundry factory, valve design factory, and valve manufacturing factory.



Q: What is Jhy core product?

A: No.1 in gate valve manufacturing, No.7 in Y strainers producing.



Q: What is special for Jhy valves?

A: Customization all you ask, as logo casting, packaging logo painting, specially for your business.



Q: What can I get from cooperating with Jhy?

1. Unique valves, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
